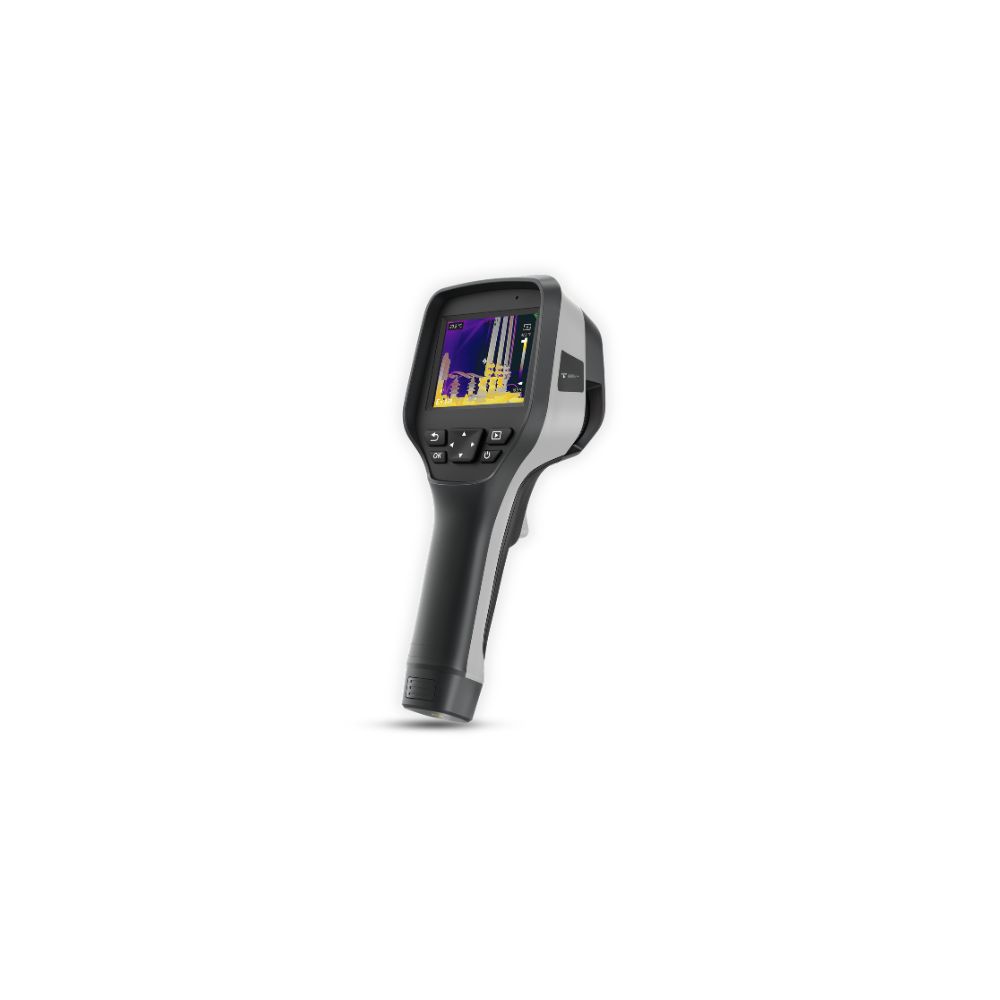

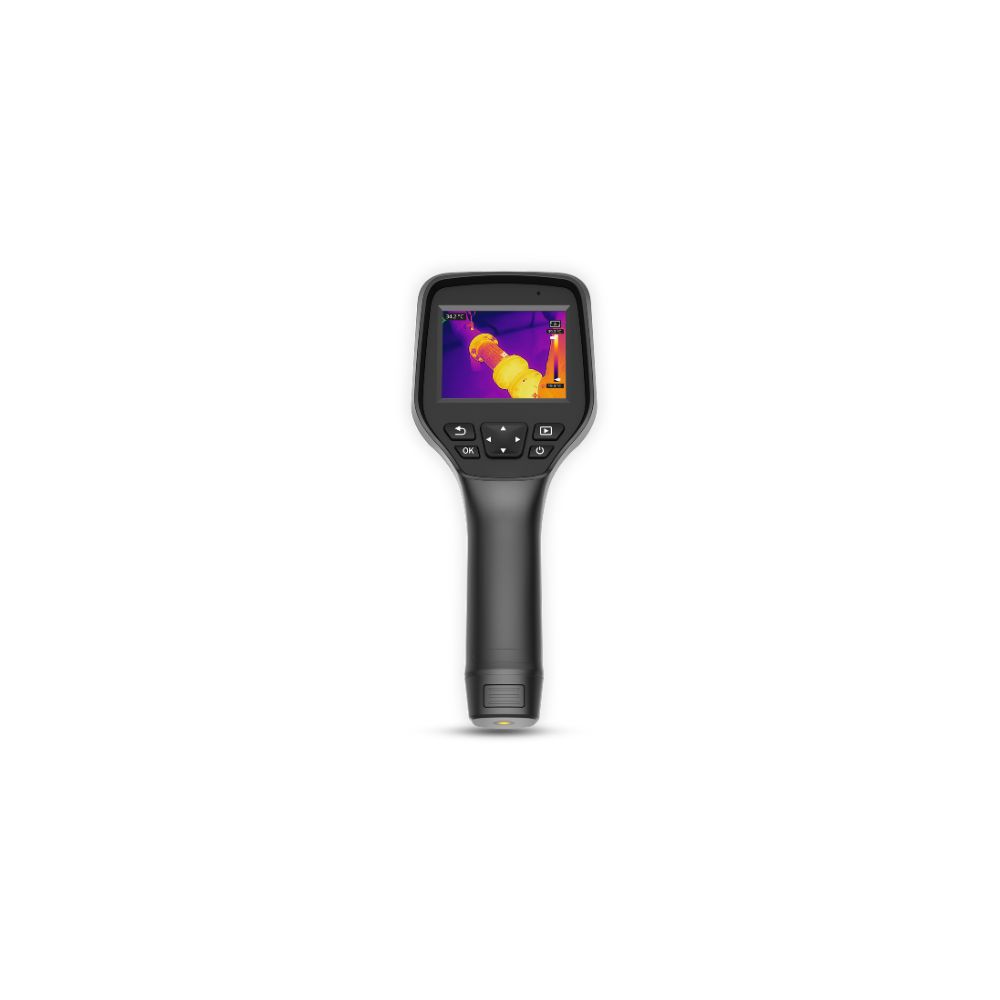

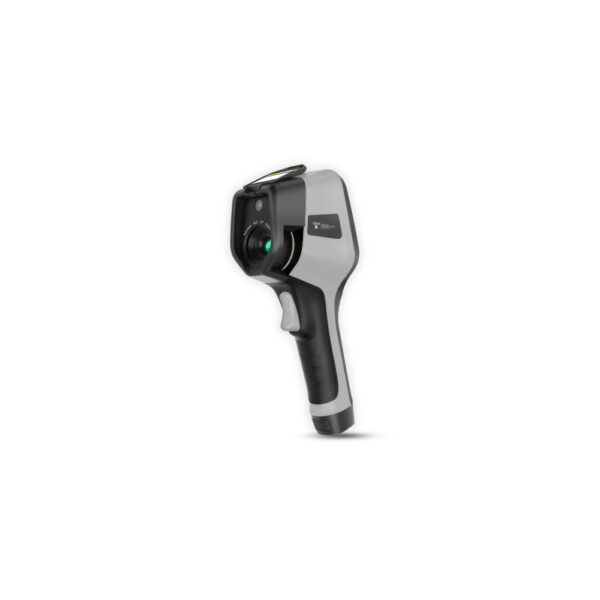

High-Resolution Compact Thermal Imaging Camera

TI341R

This Series is an advanced compact series Thermal Imaging Camera, which features a maximum IR resolution of 384×288 pixels, 3.5 inch LCD touchscreen display, IR/P-in-P/Visual/ Thermal Fusion modes, CCD camera, Voice & Text annotation etc. These models are suitable for a wide range of applications, such as Industrial inspection and testing, Power plant, Railways, Metro, Petrochemical, Metallurgy, Renewable energy, HVAC applications etc.

Higher resolution for more detailed thermal analysis
Availability of spare batteries and accessories support.
Faster and more accurate fault detection
Supports advanced reporting with video and annotation
Portable and rugged design for field inspections

Application-Based Customization

Engineered for Your Process Conditions

Expert Selection Support

Reliable After-Sales Service

Still Confused What to Buy?

Need help deciding? Download resources to know more about the product.

https://tipl.com/wp-content/uploads/2026/03/TI341R.pdf

384 x 288 pixels detector resolution.
Manual focus
3.5-inch touchscreen display, 640 x 480 resolution.
Infrared, Visible, P-in-P, Thermal Fusion.
Up to 35mK thermal sensitivity.
Laser pointer
Digital Zoom
Built-in CCD camera
Features : Android powered, Video recording, Voice & Text annotation, QR Code, WiFi, US

Electrical panel inspection
Industrial equipment monitoring
Power plant maintenance
Railway and metro systems
Petrochemical and refinery inspection
Metallurgical process monitoring
HVAC and building diagnostics

Model: TI341R
Detector: 12 μm Uncooled IR Detector, IR Detector Resolution 384 × 288 pixels
Thermal Sensitivity (NETD): ≤35 mK (≤0.035℃ @25℃)
Lens / Optics: Field of View 43.7° × 31.9°, IFOV 9.98 mrad, Focal Length 6.2 mm, Minimum Focus Distance 0.25 m
Imaging Performance: Frame Rate 30 Hz, Manual Focus, Spectral Range 7.5 – 14 µm, Digital Zoom 1x / 2x / 4x / 8x
Visual Camera: Built-in 5 MP CCD camera
Display: 3.5-inch LCD touch screen, 640 × 480 resolution
Image Modes: Thermal Image, Visible Image, Picture-in-Picture, Thermal Fusion
Temperature Range: -20°C to +550°C (-20°C to +150°C, 100°C to +550°C)
Accuracy: ±2°C or ±2% of reading, whichever is greater
Measurement Functions: 10 spots, 10 areas, 10 lines, Maximum & Minimum point tracking, Info display (Max., Min., Avg.)
Color Palette: 10 palettes
Setup Functions: Date / time, temperature units (°C / °F), language
Emissivity Correction: Adjustable 0.01 – 1.0
Laser: Laser Pointer
Storage: Micro SD card slot with 32 GB Micro SD card (optional up to 512 GB)
Capture & File Format: Single frame capture and video recording, Image format JPEG with measurement data, Video format IRV / MP4
Gallery & Analysis: Gallery available (View, Edit, Delete), On-device analysis available, PC Infrared Analysis Software & Mobile APP (iOS / Android)
Annotation & Identification: Voice annotation, Text annotation, QR code support
Battery & Power: Rechargeable Li-ion battery 3.6V 5000 mAh, operating time >6 hours, charging time ~2.5 hours, charging via USB Type-C or desktop charger, auto sleep & auto shutdown
Environment: Operating temperature -10°C ~ 50°C, storage temperature -20°C ~ 60°C (without battery), relative humidity <95% RH non-condensing
Physical: Weight ~670 g (including battery), dimensions ~258.4 × 105.1 × 102.3 mm, tripod mounting UNC 1/4-20
Interfaces: WiFi (2.4 GHz & 5 GHz, 802.11 a/b/g/n/ac), Micro SD card slot, Video output available, USB Type-C (USB 3.0 / 2.0 compliant, OTG), Remote display & control through APP
Safety & Protection: Shock 25 g (IEC 60068-2), Vibration 2 g (IEC 60068-2), Drop resistance 2 m (IEC 60068-2-32), Safety IEC 61010-1, CE certification, IP54 protection, EMC IEC 61000-4
Standard Accessories: Thermal camera, 5V 3A power adaptor, USB cable, SD card, battery ×2, quick start guide, battery charger, NABL calibration certificate, package list, safety box
Optional Accessories: 512 GB Micro SD card, spare rechargeable battery, spare battery charger

Comprehensive Services Using This Product

From installation to ongoing support, we’re with you every step of the way.

Thermography

Infrared imaging for proactive maintenance and safety.

Calibration

Precise calibration ensuring measurement accuracy and compliance.

Industries Using This Product

Our solutions are trusted by top industries to drive growth and improve operations.

Cement

Precision measurement and control solutions for efficient cement production and quality control.

Power

Optimizing power plant operations with real-time monitoring and predictive maintenance solutions.

Steel

Advanced monitoring systems for efficient steel production, ensuring product consistency and safety.

What Customers Say About Us

Trusted Engineering Support

The team provided clear technical guidance and practical solutions. Execution was smooth and well coordinated throughout.

Mr. Vivek NairGeneral Manager – Operations, Cement Industry

Dependable Technical Partner

Their approach was systematic and aligned with our plant needs. Overall experience with product and service has been positive.

Ms. Kavita RaoSenior Manager – Maintenance, Steel Sector

Application-Focused Solutions

They understood our process conditions before recommending equipment. Support during installation was handled professionally.

Mr. Rohan MehtaProject Lead – Power Plant

Consistent Service Delivery

Product performance has been stable in regular operations. The support team responds in a timely manner.

Mr. Anil DeshmukhInstrumentation Head, Process Manufacturing

Insights & News

Ensuring Environmental Compliance with CEMS: A Step Ahead

Learn how Continuous Emission Monitoring Systems (CEMS) help industries stay compliant with environmental norms, providing real-time emission data, remote monitoring, and actionable insights for sustainable and responsible manufacturing.

How Predictive Maintenance is Transforming Industrial Efficiency

Discover how advanced monitoring tools like vibration and ultrasound solutions are helping industries move from reactive to predictive maintenance—reducing downtime, extending equipment life, and optimizing productivity across critical operations.

Clients Who Have Transformed Their Operations with This Product

Frequently Asked Questions About This Product

The TI341R is used for industrial inspection, maintenance, and detailed thermal diagnostics across various applications.

The TI341R offers higher resolution (384 × 288 vs 256 × 192) and better thermal sensitivity, enabling more accurate detection of small temperature differences.

The camera measures temperatures from –20°C to 550°C.

Yes. It supports video recording, voice annotation, and text annotation, enabling complete inspection reporting.

Industries include power plants, railways, petrochemical, metallurgy, HVAC, renewable energy, and industrial manufacturing.

Download Resources
