Acoustic Imaging Camera

AI-H6

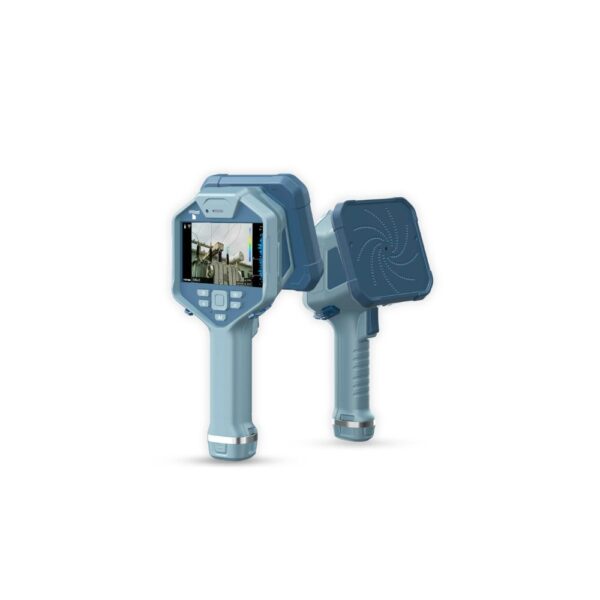

The AI-H Series Acoustic Imaging Camera is a next-generation handheld diagnostic tool designed to detect gas leaks, partial discharges, and mechanical faults in industrial environments. Using up to 162 MEMS digital microphones and a wide frequency range of 2 kHz to 100 kHz, the system visualizes sound sources in real time by overlaying acoustic images onto visual images. This enables precise fault localization even in noisy industrial conditions, improving plant safety, energy efficiency, and maintenance effectiveness.

Quick detection of gas leaks and compressed air losses
Early identification of electrical partial discharge faults
Reduces energy losses and unplanned downtime
Improves plant safety and reliability
Works effectively even in noisy industrial environments

Application-Based Customization

Engineered for Your Process Conditions

Expert Selection Support

Reliable After-Sales Service

Still Confused What to Buy?

Need help deciding? Download resources to know more about the product.

https://tipl.com/wp-content/uploads/2026/03/Acoustic-Imaging-Camera-AI-H.pdf

Advanced handheld acoustic imaging camera
162 MEMS digital microphones for high-precision acoustic detection
Wide frequency bandwidth 2 kHz – 100 kHz
5-inch touchscreen display
6.6-inch spiral microphone array
Display modes: Mono, Multi, and Holographic
Remote detection range 0.3 m to 200 m
Poly-microphone technology for accurate sound localization
Stand-alone portable device with advanced algorithms
Future software and firmware upgrades available
Improved signal-to-noise ratio for better detection in noisy environments

Gas Leak Detection: Compressed air systems, Flammable and toxic gas pipelines, and Valves, ducts, and storage containers
Electrical Partial Discharge Detection: Surface, Corona, and Floating discharge
Mechanical Fault Detection: Bearing faults, Air leaks in pneumatic systems, and Valve and pipeline issues

Detector: 162 MEMS digital microphones
Acoustic Field of View: 66° × 52°
Frequency Range: 2 kHz – 100 kHz
Acoustic Sampling Rate: 200 kHz
Acoustic Refresh Rate: 25 Hz
Measured Sound Pressure Range: Up to 120 dB SPL depending on frequency
Sound Pressure Tracking: Maximum sound pressure marker tracking
Operating Modes: Single, Multi, Hologram
Spot Measurement: 2 spots
Area Measurement: 2 areas
Real-time Distance Measurement: Automatic calculation to sound source
Digital Zoom: 1x – 10x continuous
Frequency Range Selection: Preset and manual adjustment
Detection Modes: Leakage detection and Partial discharge detection
Leak Evaluation: Automatic identification and energy loss estimation
Partial Discharge Diagnosis: Surface discharge, Floating discharge, Corona discharge detection
Acoustic Image Focus: Area masking and targeted sound focus
Display: 5-inch LCD touchscreen (1280 × 720 resolution)
Digital Camera: 13 MP industrial camera
Storage: 128 GB SD card (hot-swappable)
Image Format: JPEG
Video Format: MP4
Voice Annotation: Up to 120 seconds
Battery: 7.4V Lithium-ion, 3500 mAh
Operating Time: ≥ 4 hours
Charging Time: Approx. 2.5 hours (90% charge)
Operating Temperature: -20°C to 50°C
Storage Temperature: -40°C to 70°C
Humidity: <95% RH
Weight: Approx. 1.3 kg (including battery)
Dimensions: 175 × 151 × 95 mm
Connectivity: WiFi, Bluetooth, USB-C, Micro HDMI
Additional Sensors: GPS and Compass
Enclosure Protection: IP54
Safety Standards: IEC 60950-1, IEC 61000-4-2, CE compliant
