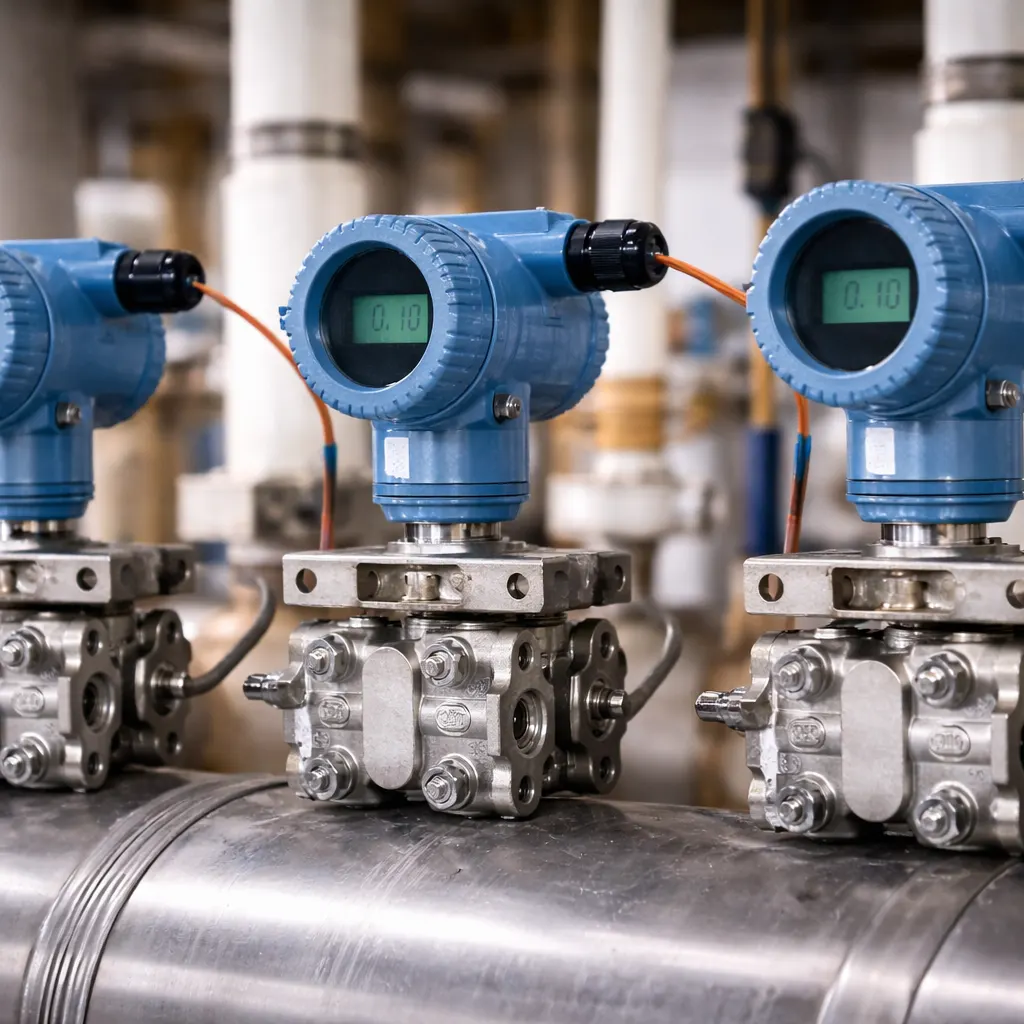

A differential pressure transmitter helps plant teams measure the pressure difference between two points in a process. It is widely used for flow measurement, closed tank level measurement, filter monitoring, draft pressure checks and other DP-based industrial applications. As a result, operators can monitor process behaviour more clearly and respond earlier when pressure conditions change.
TIPL offers differential pressure transmitter models for industrial applications where range, media condition, communication protocol and mounting arrangement matter. The range includes compact DP transmitters, smart HART DP transmitters, Profibus PA DP transmitters and remote seal DP transmitters for demanding process conditions.
Different applications need different DP transmitter designs. For example, filter monitoring may need a compact or low-range DP transmitter. However, closed tank level measurement, corrosive media or high-temperature applications may need a remote seal arrangement. Therefore, users should select the model based on pressure range, process media, connection type, seal requirement, communication protocol and installation condition.
| Model | Best Fit | Review Product |
|---|---|---|
| TP2021D | Compact differential pressure monitoring for low-range applications, air pressure checks and filter monitoring. | Compact Differential Pressure Transmitter |
| TP2051R | Remote seal DP measurement for closed tank level, viscous media, corrosive media or high-temperature process applications. | Differential Pressure Transmitter with Remote Seal |
| TP2051-D HART | Smart DP measurement with HART communication for flow, level, filter, draft and process control applications. | HART Differential Pressure Transmitter |
| TP2051-D Profibus PA | Digital DP measurement for process automation, DCS integration and fieldbus-based plant systems. | Profibus PA Differential Pressure Transmitter |
Differential pressure transmitters are used when the process needs more than direct pressure measurement. They help users measure flow through primary elements, monitor filter clogging, track closed tank level and check draft pressure in furnaces or boilers. Also, they support process control, efficiency monitoring and maintenance decisions.
A compact differential pressure transmitter is useful when the application needs simple DP monitoring in a small installation space. It can suit air pressure checks, ventilation systems, low-pressure applications and filter monitoring. However, users should verify the DP range, static pressure, process connection and output requirement before selecting the model.
Smart communication becomes important when users need configuration, diagnostics or better integration with plant systems. A HART differential pressure transmitter can support 4–20 mA signal with digital communication. In contrast, a Profibus PA differential pressure transmitter is suitable where the plant uses fieldbus-based process automation and DCS communication.
A remote seal differential pressure transmitter is useful when the process media should not directly contact the transmitter sensing element. It can help in closed tank level measurement, high-temperature media, corrosive media, viscous fluids and slurry applications. Therefore, users should review seal type, capillary length, process temperature and mounting arrangement before selection.
Correct selection starts with the DP application. First, define whether the transmitter is used for flow, level, filter monitoring, draft pressure or another process measurement. Then, check the differential pressure range, static pressure, media condition, process temperature, mounting style and output requirement. After that, review whether the plant needs HART, Profibus PA, remote seal, local display or special process connection.
