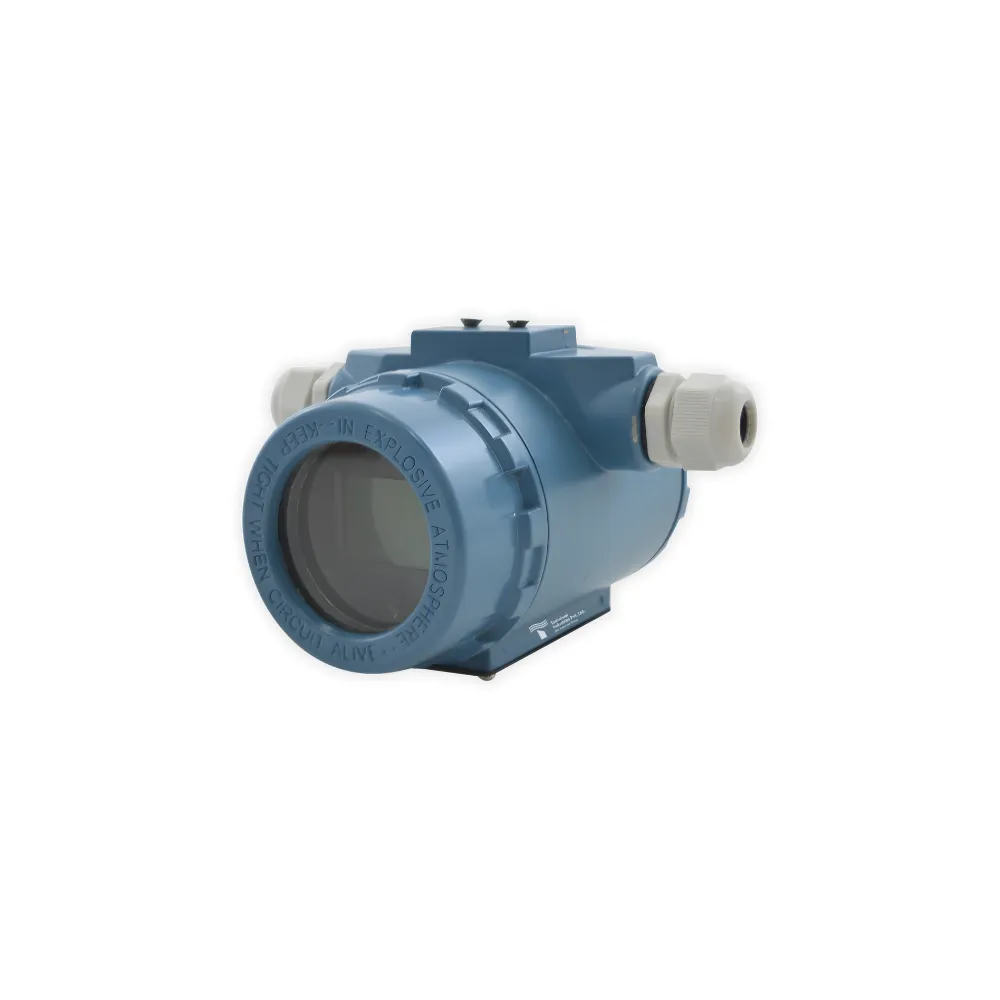

Field Mounted Temperature Transmitter — TTFU

TTFU

The field mounted temperature transmitter is designed for process areas where the transmitter needs to stay near the measuring point. It accepts RTD, thermocouple, mV, resistance and potentiometer inputs. Also, it converts the signal into a stable 4-20mA output with HART or PROFIBUS options. Therefore, it suits field-level temperature measurement in demanding industrial plants.

Field-level installation
Backlit LCD display
HART / PROFIBUS option
Rugged IP66 housing
4-20mA output support

Input type guidance

Field mounting support

Communication selection

Calibration & service backup

Still Confused What to Buy?

Need help deciding? Download resources to know more about the product.

https://www.tipl.com/wp-content/uploads/2026/05/Field-Mount-Temperature-Transmitter.pdf

Smart field-mounted design for process areas
Universal input support for RTD, thermocouple, mV, resistance and potentiometer
4-20mA DC two-wire loop powered output
HART and PROFIBUS PA communication options
Backlit LCD display with 360° rotation
5-digit main readout with 20-segment bargraph
2 kV galvanic isolation between input and output
Accuracy up to ±0.1% FS
Long-term stability of ±0.1% of reading per year
Dual sensor input support
Programmable zero adjustment through HART
Adjustable output filter from 0 to 160µA
IP66 die-cast aluminum housing
Flameproof option available
Suitable for harsh outdoor and process environments

Field process temperature measurement
Local display-based temperature monitoring
RTD and thermocouple signal conversion
Chemical process temperature loops
Oil & gas field instrumentation
Steel plant process areas
Power plant temperature monitoring
Outdoor process measurement points
DCS and PLC temperature signal transmission

Model: TTFU
Mounting Type: Field mounted
Input Types: RTD, Thermocouple, mV, Resistance, Potentiometer
RTD Input: Pt100, Pt200, Pt500, Pt1000, Pt50, Cu10, Cu50, Cu100, Ni120 and related variants
Thermocouple Input: T, E, J, K, N, R, S, B
Output Signal: 4-20mA DC, two-wire loop powered
Communication: HART / PROFIBUS PA, based on configuration
Display: Backlit LCD, 5-digit 7-segment display with 20-segment bargraph
Display Range: -19999 to 99999
Supply Voltage: 9 to 32V DC, 24V DC recommended
Response Time: 0.5 seconds, HART output update
Switch-on Delay: ≤ 5 seconds
Damping: 0 to 30 seconds, user adjustable
Cold Junction Compensation Accuracy: ±0.1°C
Isolation: 2 kV AC galvanic isolation between input and output
Failure Alarm: Low alarm 3.6mA; high alarm 22mA
Overrange / Underrange: Underrange 3.8mA; overrange 20.5mA
Ambient Operating Temperature: -40°C to +85°C
Storage Temperature: -40°C to +100°C
Relative Humidity: 0 to 100% RH
Electrical Connection: M20 × 1.5 female and ½ inch NPT female
Housing Material: Die-cast aluminum with corrosion-resistant coating
Mounting Arrangement: Suitable for 2 inch pipe mounting
Protection: IP66
Weight: Approx. 800g
