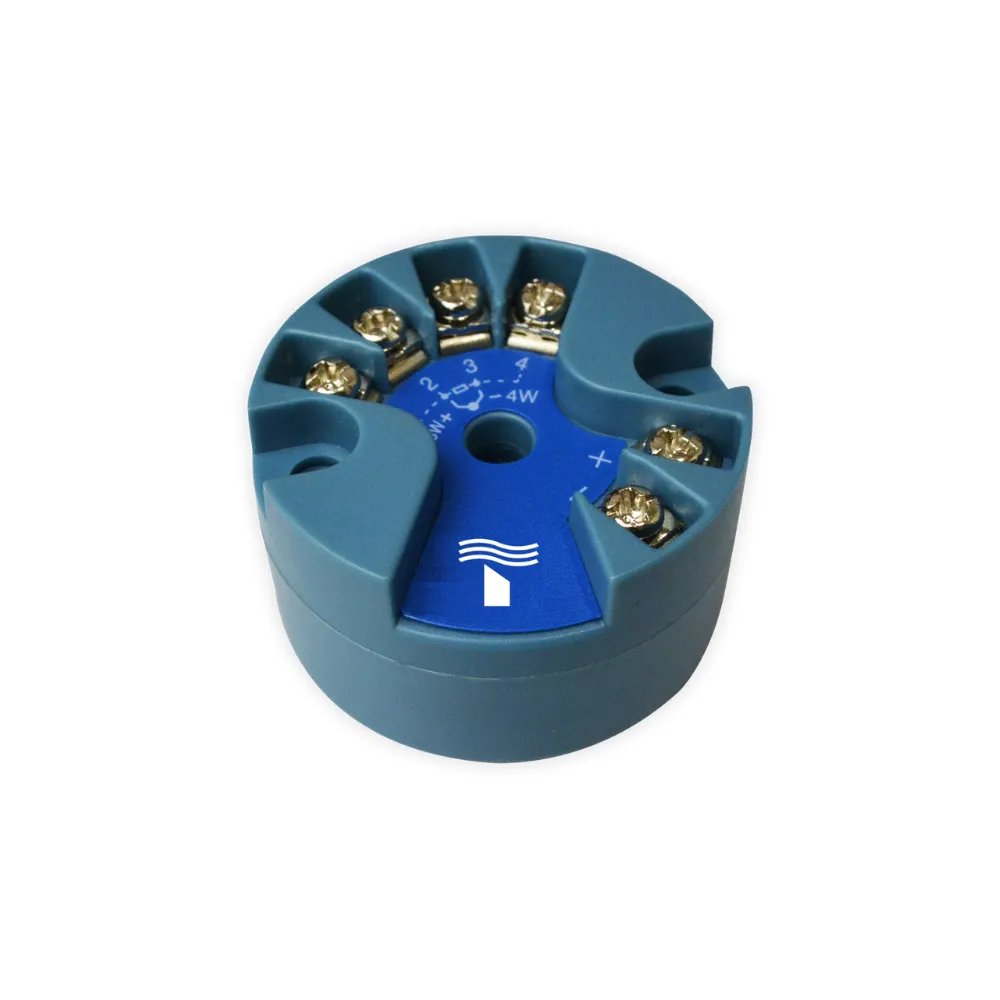

Head Mount Temperature Transmitter — TTH Series

TTH Series

The head mount temperature transmitter fits inside a DIN Form B sensor head. It converts RTD, thermocouple, mV, resistance or potentiometer input into a stable 4-20mA output. Also, it supports USB or optional HART communication as per configuration. Therefore, it helps reduce signal interference by converting the signal close to the measuring point.

Compact head mounting
Close-to-sensor conversion
4-20mA output support
Optional HART communication
Lower wiring interference

Sensor-head fit guidance

Input type selection

Range configuration support

Calibration & service backup

Still Confused What to Buy?

Need help deciding? Download resources to know more about the product.

https://www.tipl.com/wp-content/uploads/2026/05/Head-Mount-Temperature-Transmitter.pdf

DIN Form B head mounting
Universal input support for RTD, thermocouple, mV, resistance and potentiometer
4-20mA DC two-wire loop powered output
USB communication or optional HART communication
Optional galvanic isolation up to 2 kV AC
Active cold junction compensation
Configurable sensor burnout protection
Automatic sensor-specific linearization
User-adjustable damping from 0 to 30 seconds
Compact round housing for sensor heads
Wide ambient operating range from -40°C to +85°C
Wall or pipe mounting option available through enclosure selection
Suitable for RTD and thermocouple assemblies

RTD sensor head signal conversion
Thermocouple head signal conversion
Compact temperature measurement loops
Field temperature measurement points
Sensor assemblies with 4-20mA output
Process temperature signal transmission
Power plant temperature loops
Steel, cement and chemical plant applications
PLC and DCS temperature input loops

Model: TTH Series
Mounting Type: DIN Form B head mounting
Input Types: RTD, Thermocouple, mV, Resistance, Potentiometer
RTD Input: Pt100, Pt200, Pt500, Pt1000, Pt50, Cu10, Cu50, Cu100, Ni120 and related variants
Thermocouple Input: T, E, J, K, N, R, S, B
Output Signal: 4-20mA DC, two-wire loop powered
Communication: USB / HART as per configuration
Supply Voltage: 9 to 32V DC, 24V DC recommended
Response Time: < 1 second
Switch-on Delay: ≤ 5 seconds
Damping: 0 to 30 seconds, user adjustable
Cold Junction Compensation Accuracy: ±1°C
Isolation: 2 kV AC galvanic isolation between input and output, except TTHRN configuration
Failure Alarm: Low alarm 3.6mA; high alarm 21–23mA
Overrange / Underrange: Underrange 3.9mA; overrange 21mA
Current Output Resolution: 0.3µA
Ambient Operating Temperature: -40°C to +85°C
Storage Temperature: -40°C to +100°C
Relative Humidity: 0 to 95% RH, non-condensing
Housing Material: Polycarbonate for head mount version
Dimensions: Ø44 mm × 24.7 mm
Protection: IP20 or same as enclosure rating
Weight: Approx. 40g
Optional Mounting: Wall or pipe mounting enclosure option
