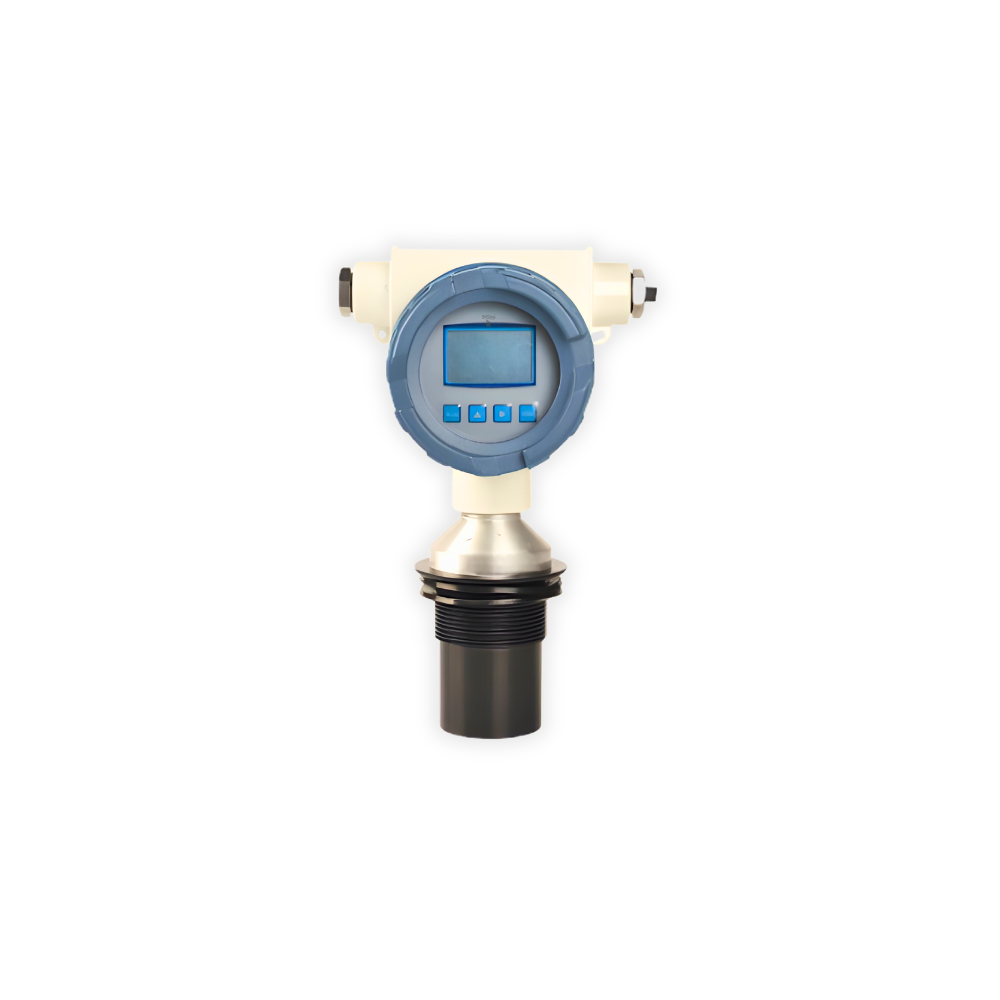

Ultrasonic Level Transmitter TLTV1000A6

TLTV1000A6

TLTV1000A6 ultrasonic level transmitter is an integral non-contact level instrument for tank and vessel monitoring up to 40 meters. It uses ultrasonic time-of-flight measurement with built-in temperature compensation and supports two-wire wiring, HART, RS485 / Modbus-RTU interface, LCD keypad operation and IP67 protection. Also, it offers aluminum alloy transmitter construction and ABS / anti-corrosion ETFE probe options. As a result, it suits industrial liquid level applications where longer range, digital communication and stronger protection are required.

Up to 40 m range
Two-wire configuration
HART / RS485 / Modbus
IP67 protection
Aluminum alloy transmitter

Range selection help

Output signal support

Mounting guidance

Communication support

Calibration backup

Still Confused What to Buy?

Need help deciding? Download resources to know more about the product.

https://tipl.com/wp-content/uploads/2026/03/TLTV1000A6-ULTRASONIC-LEVEL-TRANSMITTER-CATALOG.pdf

Integral ultrasonic level transmitter
Non-contact level measurement
Measuring range up to 40 meters
Ultrasonic time-of-flight principle
Two-wire wiring configuration
Built-in temperature sensor for real-time sound speed compensation
Four change rates for fluctuating liquid levels
Six display modes including echo waveform and historical curve
LCD screen and keypad for on-site operation
4–20mA current diagnostic function
HART / RS485 / Modbus-RTU digital interface options
Automatic electrical disturbance detection
Interference suppression function
Overvoltage and overcurrent protection
Alarm current output function
Aluminum alloy transmitter material
ABS / anti-corrosion ETFE probe material
IP67 waterproof grade
Suitable for longer range tank applications

Long-range tank level monitoring
Liquid storage tank measurement
Utility tank level monitoring
Process vessel level measurement
Non-contact liquid level monitoring
Water and wastewater applications
Tank level monitoring with HART output
Tank level monitoring with RS485 / Modbus output
Outdoor tank applications requiring IP67 protection
Industrial liquid level measurement

Model: TLTV1000A6
Product Type: Ultrasonic Level Transmitter
Measurement Principle: Ultrasonic Time-of-Flight
Measurement Type: Non-Contact Level Measurement
Measuring Range: Up to 40 meters
Blind Zone: 0.35 m to 0.6 m, depending on range
Frequency: 30 to 90 kHz
Measuring Precision: ±0.5% standard, ±0.25% optional
Resolution: 1 mm
Supply Voltage: DC 12V to 36V / AC 85V to 264V
Maximum Current: 50mA to 100mA
Wiring Configuration: 2-wire
Ripple Requirement: Less than ±200mV
Simulated Current: Load 500Ω
Digital Interface: HART / RS485 / Modbus-RTU
Process Interface: G1½” or G2”
Electrical Interface: PG11
Transmitter Material: Aluminum Alloy
Probe Material: ABS / anti-corrosion ETFE
Flange Material: ABS / anti-corrosion ETFE
Environment Temperature: -20°C to +60°C
Process Temperature: -40°C to +90°C
Waterproof Grade: IP67

Comprehensive Services Using This Product

From installation to ongoing support, we’re with you every step of the way.

Calibration

Precise calibration ensuring measurement accuracy and compliance.

Annual Maintenance Contract

Reliable year-round equipment care and support.

Installation & Commissioning

Seamless setup ensuring optimal system performance.

Industries Using This Product

Our solutions are trusted by top industries to drive growth and improve operations.

Water

Reliable solutions for water treatment and quality monitoring in industrial applications.

Power

Optimizing power plant operations with real-time monitoring and predictive maintenance solutions.

Chemicals & Fertilisers

Precision solutions for chemical processes, ensuring compliance and operational efficiency.

Steel

Advanced monitoring systems for efficient steel production, ensuring product consistency and safety.

Cement

Precision measurement and control solutions for efficient cement production and quality control.

Oil & Gas

Ensuring safe, reliable operations in oil and gas with precise monitoring and control.

Food & Beverage

Improving production and safety in food and beverage industries with real-time monitoring.

Metals

Advanced monitoring systems for efficient metal production, ensuring product consistency and safety.

What Customers Say About Us

Trusted Engineering Support

The team provided clear technical guidance and practical solutions. Execution was smooth and well coordinated throughout.

Mr. Vivek NairGeneral Manager – Operations, Cement Industry

Dependable Technical Partner

Their approach was systematic and aligned with our plant needs. Overall experience with product and service has been positive.

Ms. Kavita RaoSenior Manager – Maintenance, Steel Sector

Application-Focused Solutions

They understood our process conditions before recommending equipment. Support during installation was handled professionally.

Mr. Rohan MehtaProject Lead – Power Plant

Consistent Service Delivery

Product performance has been stable in regular operations. The support team responds in a timely manner.

Mr. Anil DeshmukhInstrumentation Head, Process Manufacturing

Insights & News

Dissolved Oxygen Measurement in Boiler Feedwater Systems

Why Does a Radar Level Transmitter Give False or Unstable Readings?

Clients Who Have Transformed Their Operations with This Product

Frequently Asked Questions

TLTV1000A6 is used for non-contact liquid level monitoring in tanks and vessels where measuring range up to 40 meters is required.

The measuring range is up to 40 meters, depending on installation and application conditions.

Yes. The digital interface options include HART, RS485 and Modbus-RTU.

TLTV1000A6 uses a two-wire configuration.

The waterproof grade is IP67.

The standard measuring precision is ±0.5%, with ±0.25% optional.

The transmitter material is aluminum alloy.

Users should check tank height, measuring range, blind zone, liquid surface condition, output signal, communication requirement, process temperature and mounting location.
