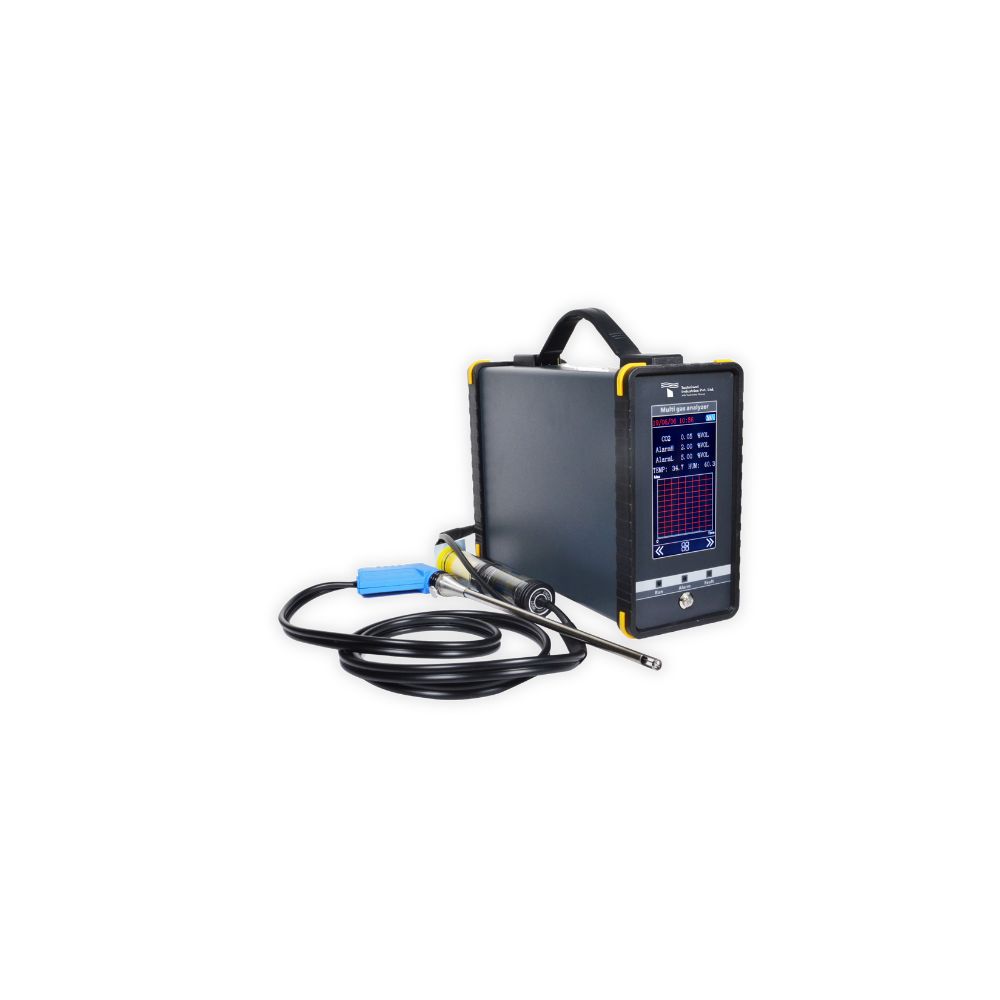

Portable Multi-Gas Analyzer TMGD-06

TMGD-06

The TMGD-06 portable multi-gas analyzer is an industrial field instrument for real-time gas concentration measurement. It can continuously or intermittently monitor single or multiple gas components and supports detection of up to 16 gases for field checks, process inspection and laboratory analysis.

Portable multi-gas field measurement.
Real-time detection of up to 16 gases.
Infrared and electrochemical detection methods
Large screen color menu operation
High-resolution touch LCD display.
High-power pumping function
Sound and light alarm indication
Around 10 hours continuous working time.

Gas selection and range review

Sampling accessory selection support

Field-use and laboratory-use guidance

High-temperature sampling accessory review

Operation and maintenance support

Service and calibration support, where applicable

Still Confused What to Buy?

Need help deciding? Download resources to know more about the product.

https://www.tipl.com/wp-content/uploads/2026/07/Portable-Multi-Gas-Analyzer-TMGD-06.pdf

Large screen color menu operation.
High-resolution touch LCD display.
Small size and easy to carry.
Easy to use and low maintenance cost.
Maximum capacity for real-time detection of 16 gases.
High-power pumping function.
3000 alarm record query functions.
Sound and light alarm function self-check.
Safety warning with timing flash and sound.
Uses infrared absorption detection and electrochemical detection methods.

Field gas concentration measurement
Industrial process gas checking
Laboratory gas analysis
Chemical industry gas measurement
Petroleum industry gas measurement
Multi-gas concentration monitoring
Single gas or multi-component gas checks
Maintenance and inspection activities
Temporary gas measurement applications

Principle of Sensor: Electrochemistry, catalysis, infrared laser
Work Environment Temperature: -10℃～55℃
Linear Error: Not more than ±2%FS
Temperature of Sample: -20-50℃
High Temperature Sampling Note: 800℃ flue gas concentration can be detected by selecting high-temperature sampling and cooling filter handle or high-temperature and high-humidity pretreatment system.
Repeatability Error: Not more than ±2%
Stability: Zero drift, drift limit ±1%FS/24h
Terminal Drift: Drift limit ±1%FS/24h
Warm Up Time: 90 sec
Response Time: 30 sec
Relative Humidity: ≤93%, non-condensing
Alarm: Sound and light
Dimensions: 293 mm (L) × 109 mm (W) × 209 mm (H)
Continuous Working Time: Around 10 hours
Weight: 4.75 Kg
Power Supply Voltage: 8.4V, Lithium ion charging
Measuring Range Field
Measure Components: SO₂, NOx, O₂, CO, CO₂, HC, H₂S, NH₃, Cl₂, Natural Gas, H₂, Fluorine, LEL etc. Higher measurement range can be customized.
SO₂: 0-20PPM, 0-2000PPM
NOx: 0-20PPM, 0-2000PPM
O₂: 0-30%VOL, 0-100%VOL
CO: 0-5000PPM, 0-80000PPM
CO₂: 0-5000PPM, 0-100%VOL
HC: 0-100PPM, 0-5000PPM
H₂S: 0-1PPM, 0-2000PPM
NH₃: 0-100PPM, 0-500PPM
Cl₂: 0-20PPM, 0-100PPM
Natural Gas: 0-100% LEL
Fluorine: 0-1PPM, 0-10PPM
H₂: 0-1000PPM, 0-100%LEL

Comprehensive Services Using This Product

From installation to ongoing support, we’re with you every step of the way.

Calibration

Precise calibration ensuring measurement accuracy and compliance.

Annual Maintenance Contract

Reliable year-round equipment care and support.

Installation & Commissioning

Seamless setup ensuring optimal system performance.

Industries Using This Product

Our solutions are trusted by top industries to drive growth and improve operations.

Power

Optimizing power plant operations with real-time monitoring and predictive maintenance solutions.

Cement

Precision measurement and control solutions for efficient cement production and quality control.

Steel

Advanced monitoring systems for efficient steel production, ensuring product consistency and safety.

Metals

Advanced monitoring systems for efficient metal production, ensuring product consistency and safety.

Oil & Gas

Ensuring safe, reliable operations in oil and gas with precise monitoring and control.

Chemicals & Fertilisers

Precision solutions for chemical processes, ensuring compliance and operational efficiency.

Water

Reliable solutions for water treatment and quality monitoring in industrial applications.

Pulp & Paper

Optimizing pulp and paper production with integrated solutions for quality and efficiency.

Food & Beverage

Improving production and safety in food and beverage industries with real-time monitoring.

Sugar & Distillery

Enhancing production efficiency in sugar and distillery processes with real-time data monitoring.

What Customers Say About Us

Trusted Engineering Support

The team provided clear technical guidance and practical solutions. Execution was smooth and well coordinated throughout.

Mr. Vivek NairGeneral Manager – Operations, Cement Industry

Dependable Technical Partner

Their approach was systematic and aligned with our plant needs. Overall experience with product and service has been positive.

Ms. Kavita RaoSenior Manager – Maintenance, Steel Sector

Application-Focused Solutions

They understood our process conditions before recommending equipment. Support during installation was handled professionally.

Mr. Rohan MehtaProject Lead – Power Plant

Consistent Service Delivery

Product performance has been stable in regular operations. The support team responds in a timely manner.

Mr. Anil DeshmukhInstrumentation Head, Process Manufacturing

Insights & News

Dissolved Oxygen Measurement in Boiler Feedwater Systems

Why Does a Radar Level Transmitter Give False or Unstable Readings?

Clients Who Have Transformed Their Operations with This Product

Frequently Asked Questions About This Product

The TMGD-06 portable multi-gas analyzer is an industrial portable instrument used for real-time gas concentration measurement in field, process and laboratory applications.

TMGD-06 can support real-time detection of up to 16 gases, depending on configuration and selected gas components.

TMGD-06 can measure gases such as SO₂, NOx, O₂, CO, CO₂, HC, H₂S, NH₃, Cl₂, natural gas, H₂, fluorine and LEL, depending on selected range.

The response time of TMGD-06 is 30 seconds.

The continuous working time of TMGD-06 is around 10 hours.

TMGD-06 is a portable gas analyzer for field and temporary measurement. For fixed continuous monitoring, an online gas analyzer should be selected.
