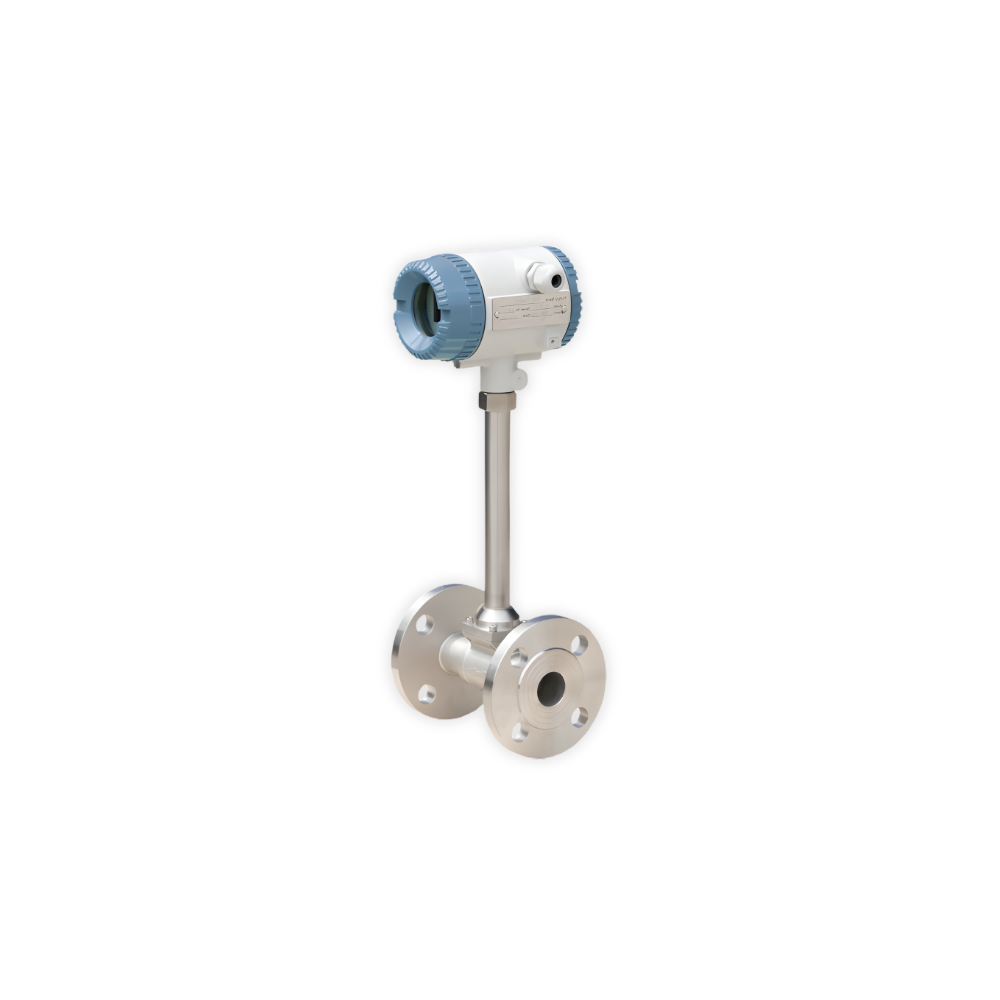

Vortex Flow Meter

TVMF Series

The TVMF Series Vortex Flow Meter is designed for accurate measurement of liquids, gases, and steam in industrial pipelines. The meter operates on the Kármán vortex street principle, where vortices generated by a bluff body in the flow stream are detected and used to calculate flow rate. With integrated pressure and temperature compensation, robust stainless-steel construction, and high-temperature capability up to 350°C, the TVMF series is widely used for steam flow measurement and energy monitoring in industrial plants.

  • Accurate measurement of steam, gas, and liquid flow
  • Reliable performance even at high temperatures
  • Low maintenance due to absence of moving parts
  • Suitable for energy monitoring and steam management
  • Flexible installation options for various pipeline configurations
Get a Quote
  • 283 customers are viewing this product
  • 7 Days Exchange
  • 1 Year Warranty
  • Free Shipping
  • Pro Active Customer Support

Application-Based Customization

Engineered for Your Process Conditions

Expert Selection Support

Reliable After-Sales Service

Still Confused What to Buy?

Need help deciding? Download resources to know more about the product.

Data Sheet
Application Note
Product Manual
  • Vortex shedding flow measurement based on Karman vortex principle
  • Integrated temperature and pressure compensation
  • Wide temperature range up to 350°C
  • High accuracy measurement for steam and gas applications
  • Embedded sensor with four piezoelectric crystals
  • Robust stainless steel body (SS304 standard, SS316 optional)
  • No moving parts, reducing wear and maintenance
  • Supports 4–20 mA analog output and pulse output
  • Digital communication via RS485 Modbus or HART
  • Multiple installation types including flange, wafer, thread, tri-clamp, and insertion
  • Saturated and superheated steam measurement
  • Compressed air flow monitoring
  • Industrial gas flow measurement
  • Chemical and petrochemical processing plants
  • Boiler steam monitoring systems
  • Power generation and heat supply systems
  • Heat transfer oil and condensate measurement
  • Flue gas and carbon dioxide flow monitoring
  • Measurement Principle: Karman Vortex Shedding
  • Measured Media: Liquid, Gas, Steam
  • Accuracy: ±1.0% (flange/wafer/thread), ±1.5% (insertion)
  • Flow Velocity Range: Liquid: 0.4–7 m/s; Gas: 4–60 m/s; Steam: 5–70 m/s
  • Pipe Size Range: DN15 – DN300 (standard)
  • Insertion Type: DN80 – DN2000
  • Medium Temperature: −40°C to +250°C / up to +350°C
  • Signal Output: 4–20 mA, Pulse
  • Communication: RS485 Modbus / HART
  • Power Supply: DC12–30 V or 3.6 V lithium battery
  • Body Material: SS304 (standard), SS316 (optional)
  • Process Connection: Flange, Wafer, Thread, Tri-clamp, Insertion
  • Protection: Industrial-grade construction

    Comprehensive Services Using This Product

    From installation to ongoing support, we’re with you every step of the way.

    Thermography

    Infrared imaging for proactive maintenance and safety.

    Thermography
    Calibration

    Precise calibration ensuring measurement accuracy and compliance.

    Calibration

    Industries Using This Product

    Our solutions are trusted by top industries to drive growth and improve operations.

    Cement
    Cement
    Cement

    Precision measurement and control solutions for efficient cement production and quality control.

    Pulp & Paper
    Pulp & Paper
    Pulp & Paper

    Optimizing pulp and paper production with integrated solutions for quality and efficiency.

    Chemicals & Fertilisers
    Chemicals & Fertilisers
    Chemicals & Fertilisers

    Precision solutions for chemical processes, ensuring compliance and operational efficiency.

    Food & Beverage
    Food & Beverage
    Food & Beverage

    Improving production and safety in food and beverage industries with real-time monitoring.

    Power
    Power
    Power

    Optimizing power plant operations with real-time monitoring and predictive maintenance solutions.

    What Customers Say About Us

    Trusted Engineering Support

    The team provided clear technical guidance and practical solutions. Execution was smooth and well coordinated throughout.

    Mr. Vivek NairGeneral Manager – Operations, Cement Industry
    Dependable Technical Partner

    Their approach was systematic and aligned with our plant needs. Overall experience with product and service has been positive.

    Ms. Kavita RaoSenior Manager – Maintenance, Steel Sector
    Application-Focused Solutions

    They understood our process conditions before recommending equipment. Support during installation was handled professionally.

    Mr. Rohan MehtaProject Lead – Power Plant
    Consistent Service Delivery

    Product performance has been stable in regular operations. The support team responds in a timely manner.

    Mr. Anil DeshmukhInstrumentation Head, Process Manufacturing

    Insights & News

    Ensuring Environmental Compliance with CEMS: A Step Ahead
    Learn how Continuous Emission Monitoring Systems (CEMS) help industries stay compliant with environmental norms, providing real-time emission data, remote monitoring, and actionable insights for sustainable and responsible manufacturing.
    How Predictive Maintenance is Transforming Industrial Efficiency
    Discover how advanced monitoring tools like vibration and ultrasound solutions are helping industries move from reactive to predictive maintenance—reducing downtime, extending equipment life, and optimizing productivity across critical operations.
    View More

    Clients Who Have Transformed Their Operations with This Product

    Logo
    Logo
    Logo
    Logo
    Logo
    Logo
    Logo
    Logo
    Logo
    Logo
    Logo

    Frequently Asked Questions About This Product

    A vortex flow meter is used to measure flow of liquids, gases, and steam in industrial pipelines using vortex shedding technology.
    Because vortex meters provide stable and accurate flow measurement even at high temperatures and pressures, making them ideal for steam systems.
    The meter detects vortices generated behind a bluff body placed in the flow stream, and the frequency of these vortices is proportional to the flow rate.
    Industries include power plants, chemical processing, petrochemical plants, food processing, and steam distribution systems.
    The meter supports 4–20 mA output, pulse output, RS485 Modbus communication, and HART protocol.
