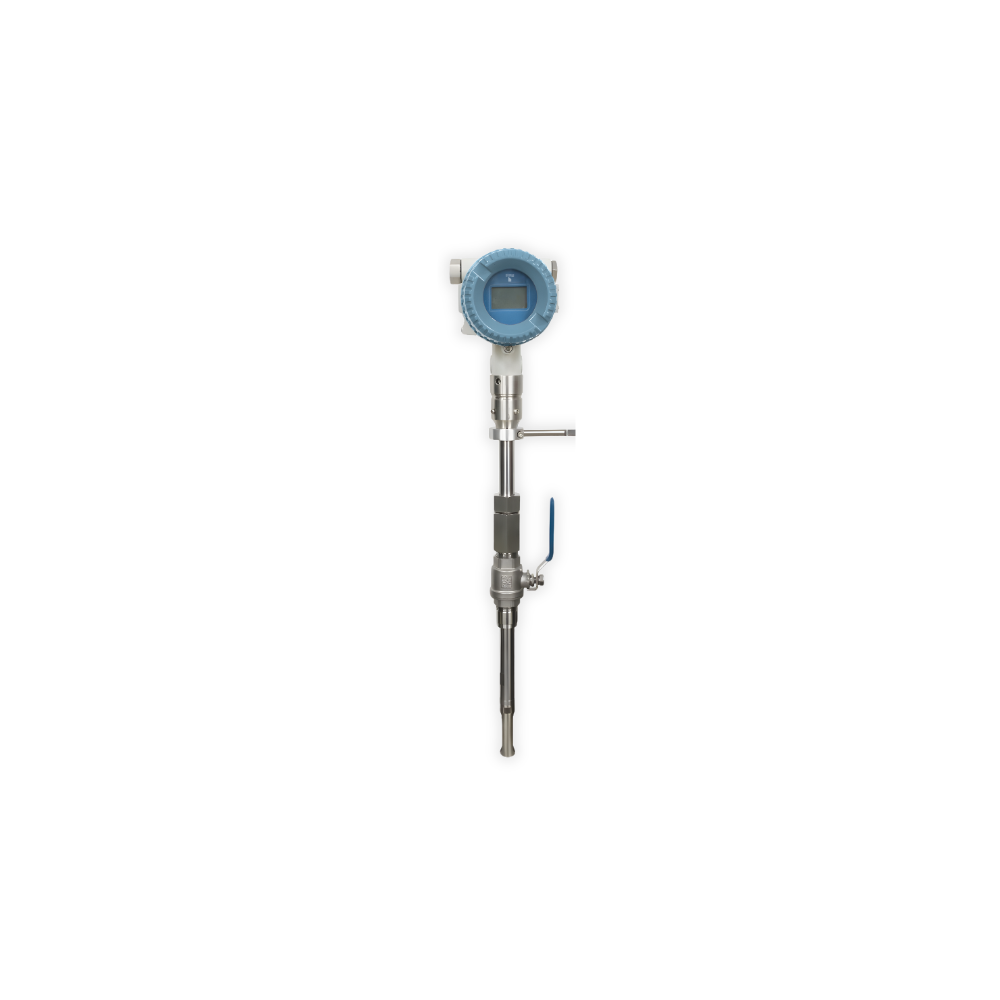

Insertion Type Electromagnetic Flow Meter

TMF/C Series

The TMF/C Series Insertion Type Electromagnetic Flow Meter is designed for accurate flow measurement in large pipelines carrying conductive liquids. The meter operates based on Faraday’s Law of Electromagnetic Induction, where the voltage generated by fluid moving through a magnetic field is proportional to the flow velocity. The insertion design allows installation directly into the pipeline through hot tapping without cutting the pipe or stopping the process, making it a cost-effective solution for large-diameter pipelines.

Cost-effective solution for large diameter pipelines
Installation possible without process shutdown
No pressure loss due to absence of moving parts
Reliable flow measurement for conductive liquids
Suitable for water supply and wastewater systems

Application-Based Customization

Engineered for Your Process Conditions

Expert Selection Support

Reliable After-Sales Service

Still Confused What to Buy?

Need help deciding? Download resources to know more about the product.

https://tipl.com/wp-content/uploads/2026/03/TMF-C-Insertion-type-Electro-magnetic-flowmeter.docx.pdf

Insertion type electromagnetic flow measurement technology
Supports bidirectional flow measurement
Hot tapping installation without pipeline shutdown
Dual frequency excitation for stable zero point
Integrated diagnostics and empty pipe detection
High protection grade with IP65 / IP68 options
Precision coil winding for uniform magnetic field
Wide pipe diameter compatibility
No moving parts resulting in minimal maintenance
High accuracy up to ±1.5% of reading

Municipal water supply systems
Wastewater and sewage treatment plants
Irrigation and water distribution networks
Cooling water circulation systems
Industrial process water monitoring
Chemical and process industries
Mining and metallurgy process pipelines

Measurement Principle: Electromagnetic (Faraday’s Law)
Pipe Diameter Range: DN100 – DN3000
Accuracy: ±1.5% of reading
Flow Velocity Range: 0.1 – 15 m/s
Minimum Conductivity: > 20 μS/cm
Protection Rating: IP65 / IP68
Power Supply: AC 85–250 V / DC 20–36 V
Power Consumption: < 15 W
Communication: RS485 / Modbus / HART / Profibus
Display: 3.5-inch color LCD
Communication: 4–20 mA, OCT, Relay, RS232, RS485 (Modbus), Data Logger
Output Signal: 4–20 mA current / 0–5 kHz frequency
Working Pressure: ≤ 1.6 MPa
Ambient Temperature: −25°C to 60°C
Medium Temperature: Up to 80°C
Electrode Material: SS316L / Hastelloy B / Hastelloy C
Sensor Body Material: SS304 standard (SS316 optional)
Straight Pipe Requirement: Inlet ≥ 10D, Outlet ≥ 5D

Comprehensive Services Using This Product

From installation to ongoing support, we’re with you every step of the way.

Thermography

Infrared imaging for proactive maintenance and safety.

Calibration

Precise calibration ensuring measurement accuracy and compliance.

Industries Using This Product

Our solutions are trusted by top industries to drive growth and improve operations.

Water

Reliable solutions for water treatment and quality monitoring in industrial applications.

Power

Optimizing power plant operations with real-time monitoring and predictive maintenance solutions.

Steel

Advanced monitoring systems for efficient steel production, ensuring product consistency and safety.

Cement

Precision measurement and control solutions for efficient cement production and quality control.

What Customers Say About Us

Trusted Engineering Support

The team provided clear technical guidance and practical solutions. Execution was smooth and well coordinated throughout.

Mr. Vivek NairGeneral Manager – Operations, Cement Industry

Dependable Technical Partner

Their approach was systematic and aligned with our plant needs. Overall experience with product and service has been positive.

Ms. Kavita RaoSenior Manager – Maintenance, Steel Sector

Application-Focused Solutions

They understood our process conditions before recommending equipment. Support during installation was handled professionally.

Mr. Rohan MehtaProject Lead – Power Plant

Consistent Service Delivery

Product performance has been stable in regular operations. The support team responds in a timely manner.

Mr. Anil DeshmukhInstrumentation Head, Process Manufacturing

Insights & News

Ensuring Environmental Compliance with CEMS: A Step Ahead

Learn how Continuous Emission Monitoring Systems (CEMS) help industries stay compliant with environmental norms, providing real-time emission data, remote monitoring, and actionable insights for sustainable and responsible manufacturing.

How Predictive Maintenance is Transforming Industrial Efficiency

Discover how advanced monitoring tools like vibration and ultrasound solutions are helping industries move from reactive to predictive maintenance—reducing downtime, extending equipment life, and optimizing productivity across critical operations.

Clients Who Have Transformed Their Operations with This Product

Frequently Asked Questions About This Product

An insertion electromagnetic flow meter is a flow measurement device inserted into the pipeline wall to measure fluid velocity using electromagnetic induction principles.

The meter measures conductive liquids such as water, wastewater, slurry, and industrial liquids with conductivity above 20 μS/cm.

Yes. The insertion design allows installation using hot tapping methods, meaning the pipeline does not need to be shut down.

The TMF/C series supports large pipelines from DN100 to DN3000.

The meter supports 4–20 mA analog output, frequency output, RS485 Modbus communication, HART, and Profibus protocols.
