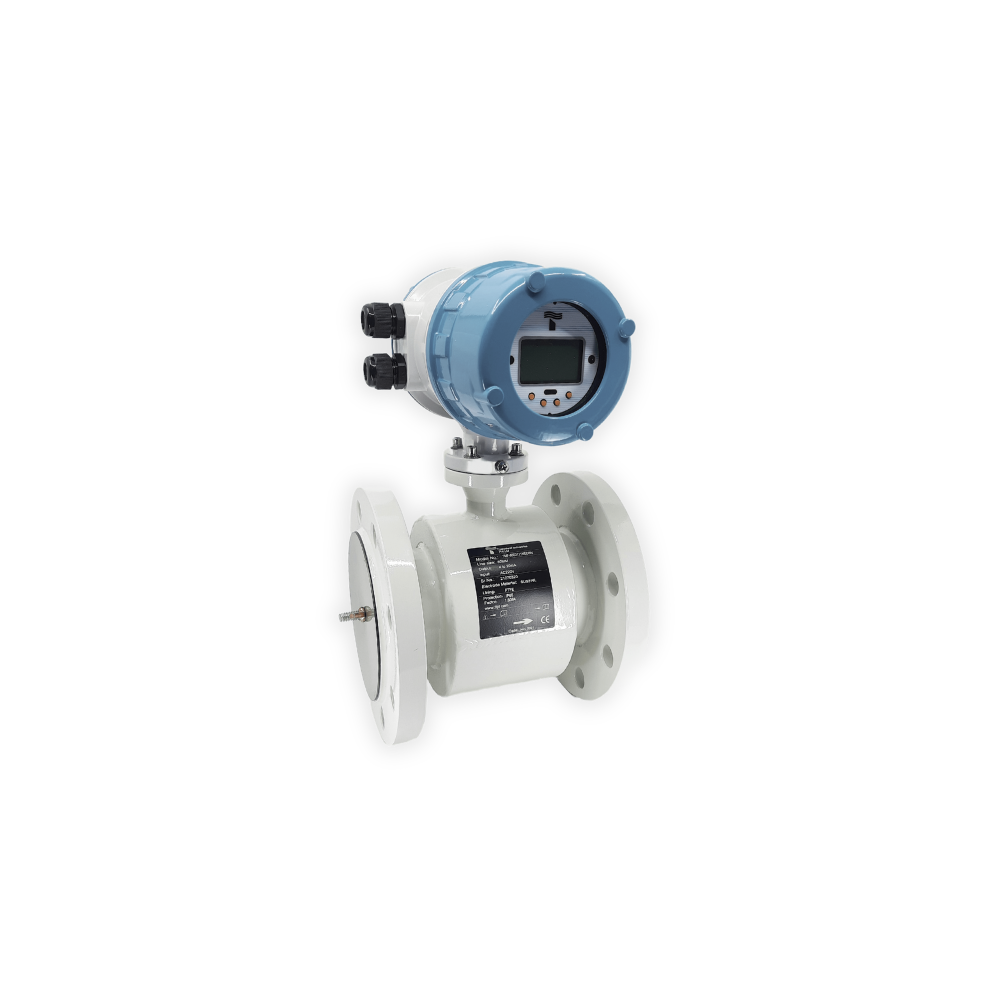

TMF-T Model Electromagnetic Flow Meter with IP68 Protection

TMF-T

The TMF-T Electromagnetic Flow Meter is a highly reliable volumetric flow measurement device designed for conductive liquids in industrial pipelines. Based on Faraday’s Law of Electromagnetic Induction, the meter measures flow by detecting the voltage generated when conductive fluid moves through a magnetic field. With advanced diagnostics, empty pipe detection, and dual-frequency excitation technology, the TMF-T ensures stable and accurate flow measurement for water, chemicals, slurry, and corrosive liquids across a wide range of industrial applications.

Highly accurate volumetric flow measurement for conductive liquids
No pressure loss due to absence of moving parts
Reliable performance in corrosive and slurry applications
Minimal maintenance due to robust electromagnetic design
Flexible installation with integral or remote transmitter options

Application-Based Customization

Engineered for Your Process Conditions

Expert Selection Support

Reliable After-Sales Service

Still Confused What to Buy?

Need help deciding? Download resources to know more about the product.

https://tipl.com/wp-content/uploads/2026/03/TMF-T-Electromagnetic-flow-meter.docx_removed.pdf

Electromagnetic flow measurement based on Faraday’s law
High accuracy up to ±0.5% (±0.25% optional)
Dual-frequency excitation for improved stability
Integrated diagnostics and empty pipe detection
Bidirectional flow measurement capability
Built-in reference electrodes eliminating ground rings
Wide pipe diameter compatibility from DN3 to DN3000
Multiple liner materials for corrosive and abrasive media
High protection rating up to IP65/IP68
Supports RS485 Modbus and HART communication protocols

Water and wastewater treatment plants
Chemical and pharmaceutical industries
Food and beverage processing plants
Mining and cement industries
Pulp and paper industry
Steel plants and metallurgy
Power plants and chilled water systems
Slurry and pulp flow measurement

Measurement Principle: Electromagnetic (Faraday’s Law)
Pipe Size Range: DN3 – DN3000
Accuracy: ±0.5% (Standard), ±0.25% (Optional)
Conductivity Requirement: >20 μS/cm
Velocity Range: 0.1 – 15 m/s
Output Signals: 4–20 mA, Pulse Output
Communication: RS485 (Modbus), HART
Power Supply: 220 VAC / 24 VDC
Power Consumption: <20 W
Protection Rating: IP65 (integral) / IP65-IP68 (remote)
Electrode Materials: SS316L, Hastelloy B, Hastelloy C, Titanium, Tantalum, Platinum
Liner Materials: PTFE, PFA, FEP, Neoprene, Polyurethane
Ambient Temperature: −20°C to 60°C
Straight Pipe Requirement: Inlet ≥ 10D, Outlet ≥ 5D
