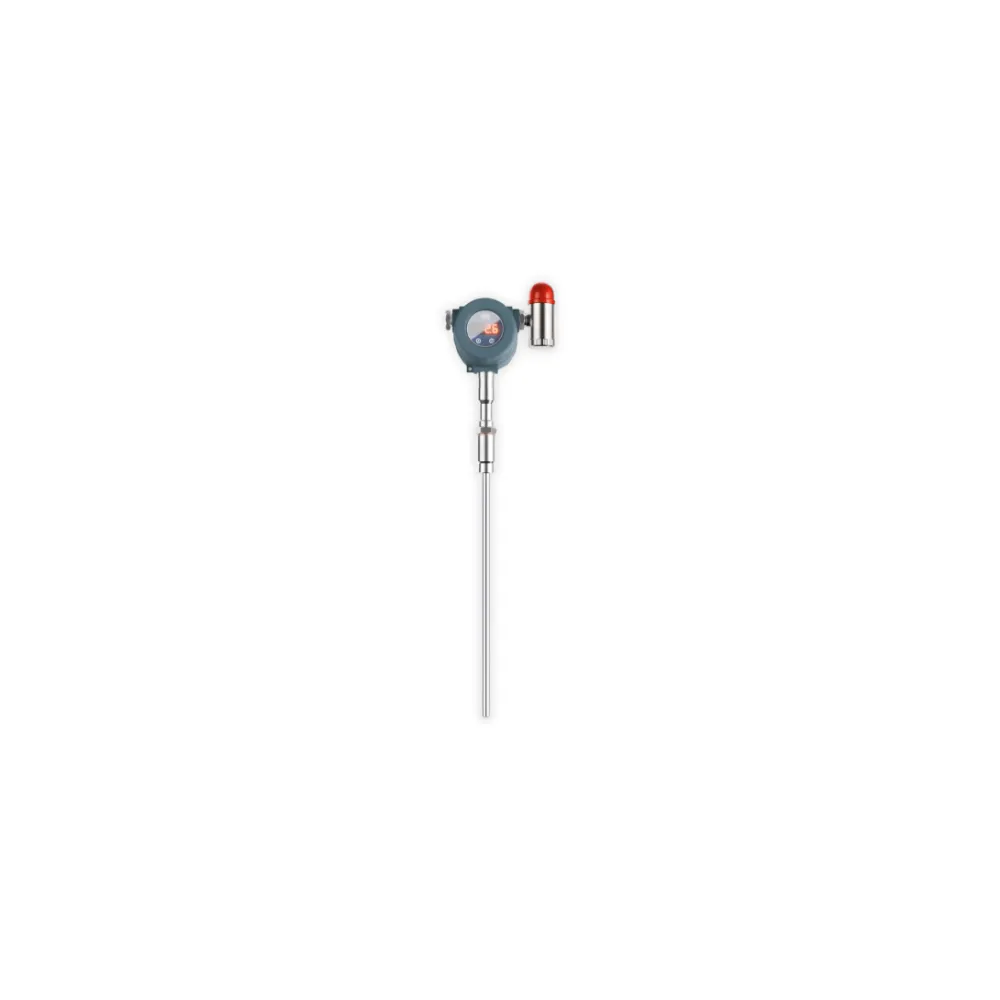

Triboelectric Dust Analyzer

TDA-3000

The TDA-3000 Triboelectric Dust Analyzer is an advanced industrial instrument designed for continuous monitoring of dust concentration and emission levels in process gases. Based on AC electrostatic (triboelectric) measurement technology, it detects the charge generated by dust particles flowing through pipelines to provide real-time online measurement of dust emission (mg/sec) and concentration (mg/m³). With its integrated sensor, transmitter, and display, it ensures reliable and maintenance-friendly operation in harsh industrial environments.

Real-time monitoring of dust emissions for compliance
Improves environmental safety and pollution control
Detects process abnormalities and filter failures early
Simple installation with integrated design
Reliable operation in harsh industrial conditions

Yes. It supports: 4–20 mA output Relay outputs

Engineered for Your Process Conditions

Expert Selection Support

Reliable After-Sales Service

Still Confused What to Buy?

Need help deciding? Download resources to know more about the product.

https://tipl.com/wp-content/uploads/2026/04/Triboelectric-Dust-Analyzer-TDA-3000-1.pdf

Advanced triboelectric (AC electrostatic) measurement technology
Measures both dust concentration (mg/m³) and emission rate (mg/sec)
Integrated design: sensor + transmitter + display
Real-time continuous monitoring
Linear output proportional to dust concentration
High reliability and accuracy in industrial environments
Wide measurement range from low to high dust levels
Suitable for online monitoring in pipelines and ducts
4–20 mA output with relay signals
IP65 rugged housing for industrial use

Power plants and boiler exhaust monitoring
Cement plants (bag filter / ESP monitoring)
Steel and metallurgical industries
Chemical and pharmaceutical industries
Dust emission monitoring in fixed pollution sources
Powder material recovery systems
Process dust transport monitoring

Measuring range: 0-10mg/m3 ～ 0-10g/m3
Range of dust particle size: The nominal range is 0.1μM～400μM, and the signal characteristics are slightly different
Pipeline gas pressure: -0.1 ～ 2MPa
Pipeline gas flow rate: 1m/s～30m/s
Pipeline gas temperature: -50 ～ 250℃ (standard); 400℃ & 800℃ (optional)
Insertion length: 1000mm, other lengths on order
Transmitter output: 4-20mA with Isolator
Digital output: NO Relays - 2 nos.
Zero drift: (Time) Less than 1% of the range per year and (Temperature) Within the specified temperature range, less than 1%of the range
Full-scale drift: (Time) Less than 1% of the range per year
Operation and environmental protection: Protection level: IP65 aluminum alloy housing, suitable for installation in non-corrosive environments, Stainless steel probe
Vibration of the operating environment: Maximum continuous oscillation, in any direction and at any frequency: root mean square-value 2g (20m/s2)
Electromagnetic field of the operating environment: At 50 Hz, the maximum value is equal to 60A/m (equivalent to a 1 m x 1 m square electromagnetic coil with a 50AT magnetic field)
Transmitter power supply: 100 ～230VAC, 50Hz
Operating ambient temperature: -20～60℃
Operating environment humidity: Upto 90%, No condensation
