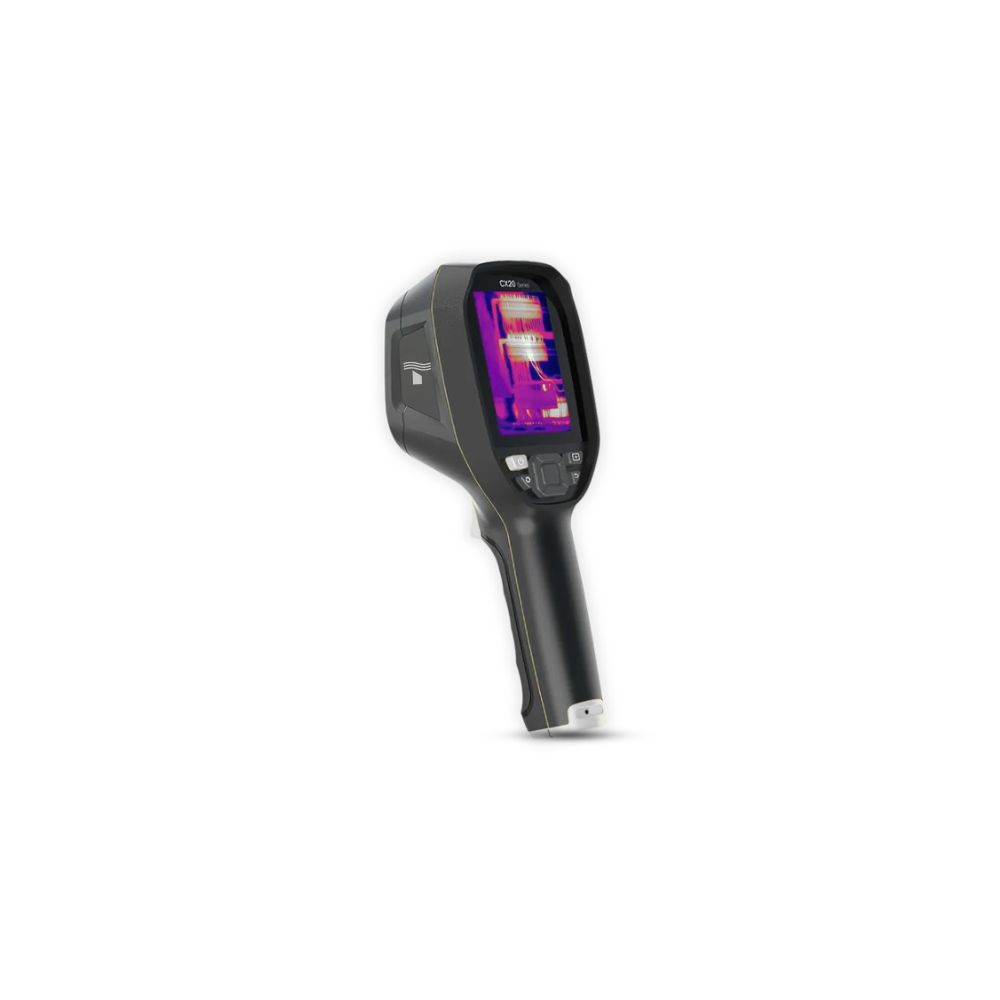

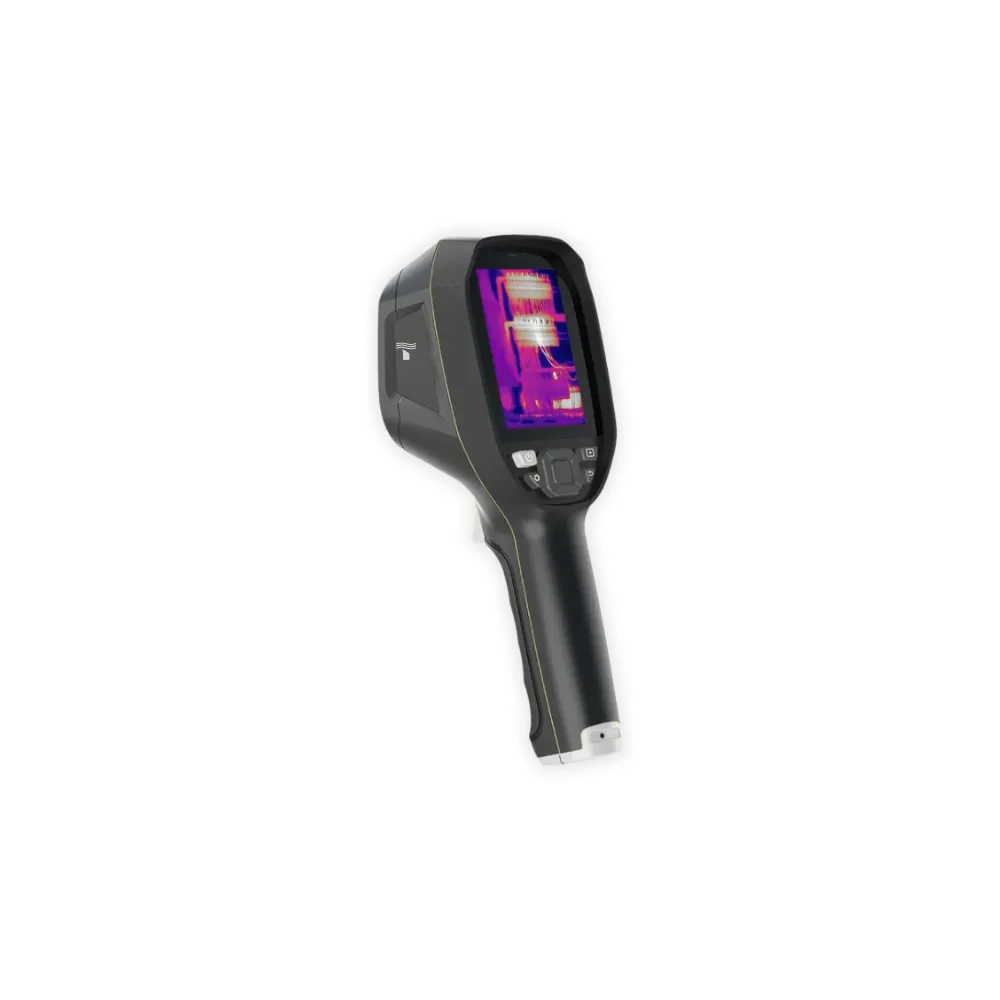

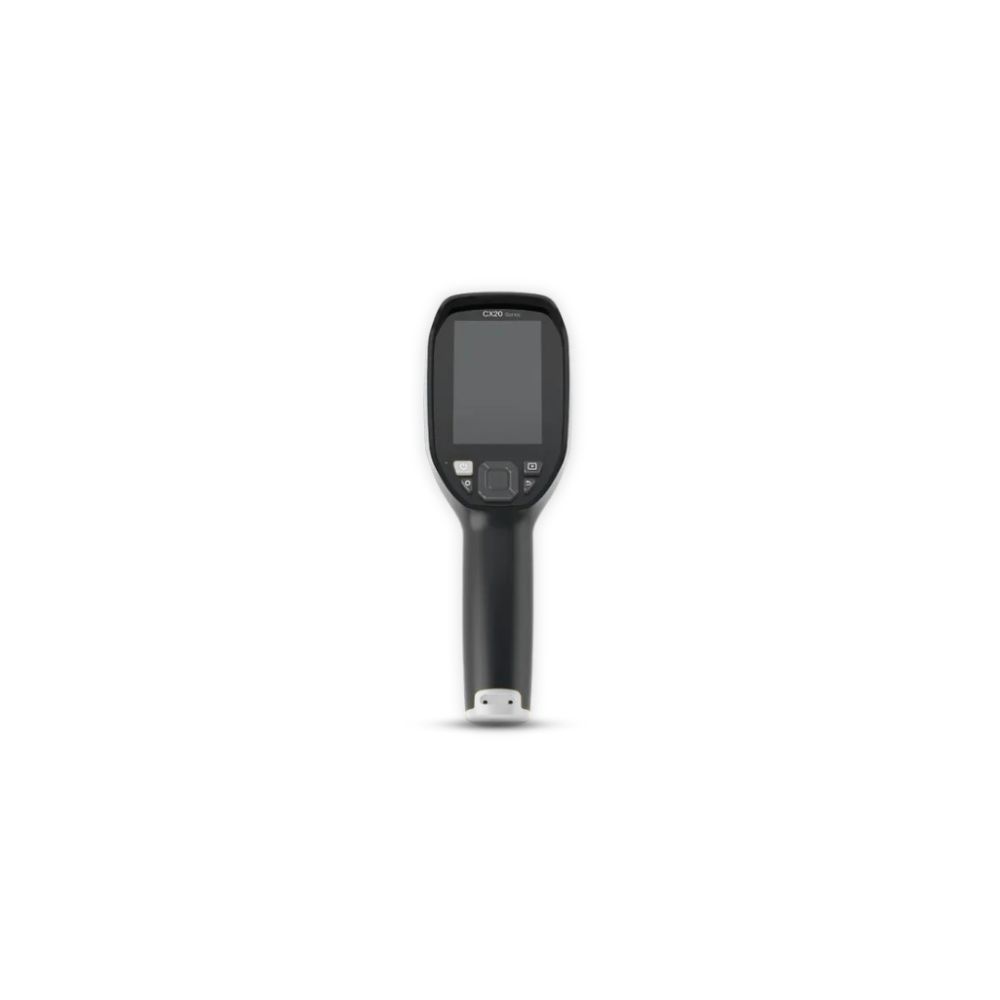

Thermal Imaging Camera

TIX05

This Series is an advanced compact series Thermal Imaging Camera, which features a maximum IR resolution of 256×192 pixels, 3.5 inch touchscreen display, IR/P-in-P/Visual/ Thermal Fusion modes, CCD camera, Voice & Text annotation etc. These models are suitable for a wide range of applications, such as Industrial inspection and testing, Power plant, Railways, Metro, Petrochemical, Metallurgy, Renewable energy, HVAC applications etc

An advanced analysis software to control the thermal imager through PC, analyze data, print reports, create templates, etc. System requirements: Microsoft Windows XP/7/10

Accurate detection of thermal anomalies and faults
Improves maintenance efficiency and troubleshooting speed
Supports detailed reporting with voice and image annotation
Portable design ideal for field inspections
Enhances safety by enabling non-contact temperature measurement

Application-Based Customization

Engineered for Your Process Conditions

Expert Selection Support

Reliable After-Sales Service

Still Confused What to Buy?

Need help deciding? Download resources to know more about the product.

https://tipl.com/wp-content/uploads/2026/03/TIX05.pdf

256 x 192 pixels detector resolution.
Fixed focus
3.5 inch touchscreen display, 480 x 640 resolution.
Thermal, Visible, P-in-P, Thermal Fusion.
Up to 35mK thermal sensitivity.
Laser pointer
Digital Zoom
Built-in CCD camera
Features : Android powered, Video recording, Voice & Text annotation, WiFi, USB

Industrial inspection and maintenance
Electrical systems and power plants
Railways and metro systems
Petrochemical industries
Metallurgical processes
Renewable energy systems
HVAC inspection and diagnostics

Model: TIX05
Detector: 12 μm Uncooled IR Detector, IR Detector Resolution 256 × 192 pixels
Thermal Sensitivity (NETD): ≤40mK (≤0.04℃ @25℃)
Lens / Optics: Field of View 56° × 42°, IFOV 3.8 mrad, Focal Length 3.2 mm, Minimum Focus Distance 0.3 m
Imaging: Frame Rate 25Hz, Fixed Focus, Spectral Range 7.5μm ~ 14μm, Digital Zoom 2X / 4X, Built-in 2 MP camera
Display: 3.5 inch touchscreen display, 480 × 640 resolution
Image Modes: Infrared image, Visible image, Picture in Picture, Thermal Fusion
Measurement Functions: Real-time movable points (max, min or standard), movable area (max, min, avg), arbitrary line temperature measurement (resizable, movable & angle orientation), temperature alarm (sound, color), flashlight available
Temperature Range: -20°C to +550°C (-20°C to +150°C, 100°C to +550°C)
Accuracy: ±2°C or ±2% of reading, whichever is greater
Measurement Functions: 3 custom points, Maximum & Minimum point tracking, Info display (Max., Min., Avg.)
Color Palette: 7 palettes in camera, 20 palettes in software
Emissivity Correction: Adjustable 0.01 to 1.0
Laser: Laser Pointer
Storage: 32 GB Internal Memory with Micro SD card slot (built-in)
Capture & File Format: Single frame capture and video recording, Image format JPEG with measurement data, Video format IRV / MP4
Gallery & Analysis: Gallery available (View, Analyse, Edit, Delete), PC Infrared Analysis Software & Mobile APP (iOS / Android)
Battery & Power: Rechargeable lithium-ion battery, Operating time >6 hours, Charging time ~2½ hours, Charging via USB Type-C or desktop charger, Auto sleep and auto shut down
Environment: Operating temperature -10°C ~ 50°C, Storage temperature -20°C ~ 60°C (without battery), Relative humidity <95% RH non-condensing
Physical: Weight ~500 g (including battery), Dimensions ~246 × 101 × 85 mm, Tripod mounting UNC 1/4-20 threaded hole
Interfaces: WiFi available, Video output available, USB Type-C cable, Remote display & control through APP
Safety & Protection: Shock 25g (IEC 60068-2), Vibration 2g (IEC 60068-2), Drop resistance 2 meters (IEC 60068-2-32), Safety IEC 61010-1, CE certified, Ingress protection IP54, EMC IEC 61000-4
Standard Accessories: USB cable, User manual, Certificate of qualification, NABL calibration certificate, Charger, Carry bag
