Multi-parameter Liquid Analyser

T-WQA-04-01

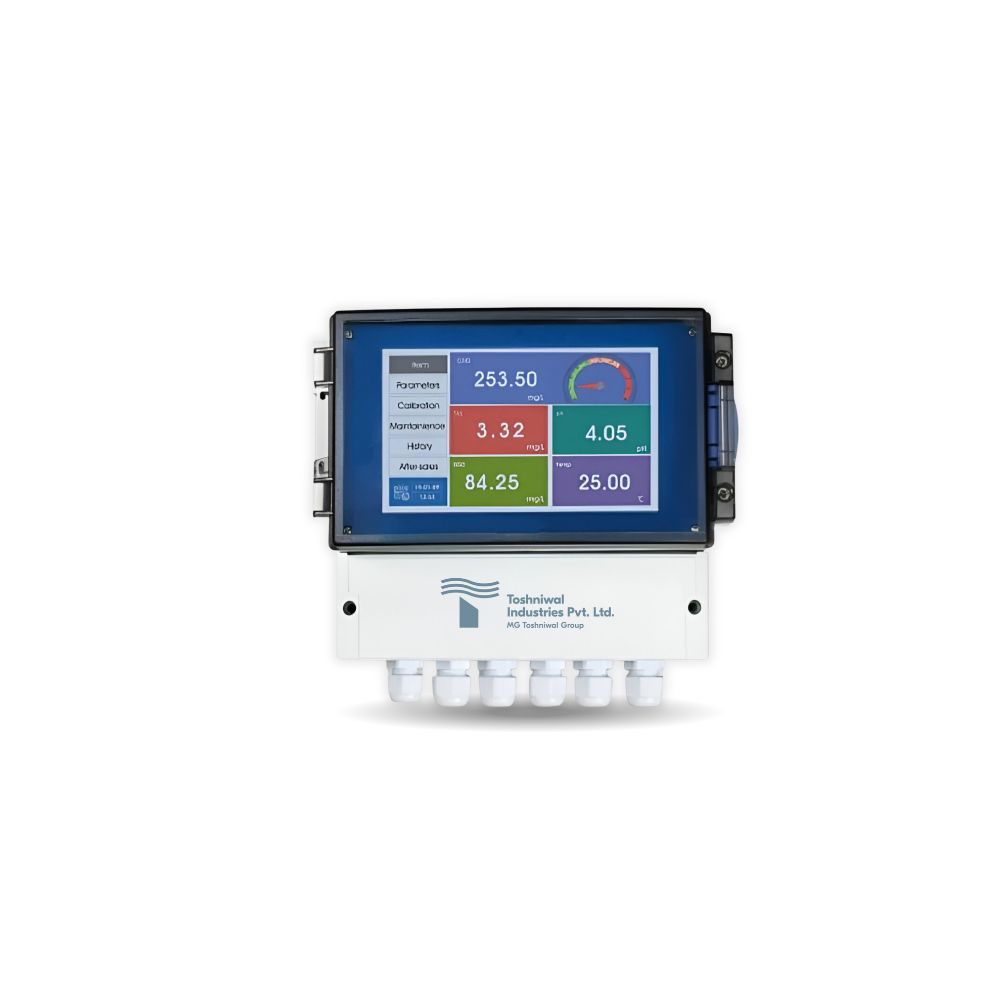

The T-WQA-04-01 Online Water Quality Analyzer is an advanced multi-parameter monitoring system designed for continuous measurement of COD, BOD, TSS, pH, FCL, temperature, and other water quality parameters. Based on optical and electrochemical measurement principles, it integrates multiple intelligent sensors into a single platform. With a 7-inch touchscreen interface, modular sensor architecture, and real-time data logging, it enables complete water quality analysis for industrial and environmental applications.

Complete water quality monitoring in one system
Reduces cost by combining multiple analyzers
Plug-and-play sensors reduce calibration effort
Improves compliance with pollution control norms
Real-time monitoring for better process decisions

Application-Based Customization

Engineered for Your Process Conditions

Expert Selection Support

Reliable After-Sales Service

Still Confused What to Buy?

Need help deciding? Download resources to know more about the product.

https://tipl.com/wp-content/uploads/2026/03/ONLINE-WATER-ANALYZER-FOR-COD_BOD_TSS_PH_FCL-MEASUREMENT-T-WQA-04-02.pdf

Digital intelligent sensors can be arbitrarily combined, plug and play, and the controller can be recognized automatically. It can be customized for single-parameter, double-parameter, and multi-parameter controllers, which can save costs better.
Automatically read the internal calibration record of the sensor, and replace the sensor without calibration, thus saving more time.
New circuit design and construction concept, low failure rate, strong anti-interference ability.
IP65 protection level, applicable to indoor and outdoor installation requirements

Industrial wastewater treatment (ETP)
Municipal sewage treatment plants (STP)
Environmental monitoring (rivers, lakes)
Chemical and petrochemical industries
Food & beverage and pharmaceutical industries
Mining, paper, textile industries
Government pollution monitoring systems

Parameter: PH
Principle: Electrochemistry
Range: 0~14 pH
Accuracy: ±0.3pH
Resolution: 0.01pH
MTBF: ≥1440H
Parameter: COD
Principle: UV
Range: 0~1500mg/L or Customize
Accuracy: ±3%
Resolution: 0.01mg/L
MTBF: ≥1440H
Parameter: BOD
Principle: UV
Range: 0~900mg/L or Customize
Accuracy: ±3%
Resolution: 0.01mg/L
Parameter: TSS
Principle: 90°infrared
Range: 0-100,000mg/L or extended
Accuracy: ±3%
Resolution: 0.01mg/L
Principle: DPD
Range: 0-5mg/L
Accuracy: ±1%
Resolution: 0.01
Principle: Thermal resistance
Range: 0℃~100℃
Accuracy: ±1%
Resolution: 0.1℃
Principle: Thermal resistance
Range: 0℃~100℃
Dimensions: 235185120mm，Wall mounting
IP Grade: IP65
Power supply: 100～240VAC or 9～36VDC
Power: 3W～5W
Interface: Support RS-485, MODBUS protocols
COD Range: 0.1 to 1500mg/L equiv.KHP
BOD Range: 0.1 to 900mg/L equiv.KHP
COD/BOD Accuracy: <5% equiv.KHP
COD/BOD Resolution: 0.01mg/L equiv.KHP
TOC Range: 0.1 to 750mg/L equiv.KHP
TOC Accuracy: <5% equiv.KHP
TOC Resolution: 0.1mg/L equiv.KHP
Tur Range: 0.1-4000 NTU
Tur Accuracy: ＜3% or 0.2NTU
Tur Resolution: 0.1NTU
Temperature Range: +5 ~ 45℃
Housing IP Rating: IP68
Maximum pressure: 1 bar
User Calibration: one or two points
Power/Outlet: 9~36VDC / RS485 MODBUS RTU
Measurement mode: 140°IR scattered light method
Dimensions: Diameter 50mm*length 210mm
Housing material: PVC+316 Stainless steel
Waterproof grade: IP68
Measurement range: 0-50000mg/L
Measurement accuracy: < measured value±10% (Depending on the homogeneity of sludge) or 10mg/L, whichever is greater.
Pressure range: ≤0.2Mpa
Measuring temperature: 0-45℃
Calibration: Standard liquid calibration, water sample calibration
pH Range: 0-14pH
pH Zero: 7.00±0.25
Temp Range: 0-60℃
Output Signal: RS485 or 4-20mA
Pressure Range: 0—0.3MPa
Temperature Sensor: NTC10K
Housing Materials: PA+GF
Membrane Resistance: ＜500MΩ
Reference System: Ag/AgCl/KCl
Liquid Junction: Ceramic Cores
Electrolyte Solution: KCl
Double Salt Bridge: Yes
Threaded connection: NPT3/4’’
Cable length: Standard 10m, can be extended to 100m
Measuring range: 0-20 mg/L
Measuring accuracy: ±1%F.S
Temperature range: 0-60℃
Output Signal: RS485 or 4-20mA
Pressure Range: 0—0.3MPa
Measurement material: double platinum ring / 3 electrode Shell material: glass + POM
Power supply: 9-36VDC
Waterproof grade: IP68
Calibration: sample calibration, comparison and calibration
Connection mode: 4- core cable
Threaded connection: NPT3/4’’
Cable Length: 10m or Customize
Scope of application: tap water, swimming pool water, etc
