Online pH & Conductivity Analyzer

T-pH-EC-100

The T-pH-EC-100 Online Analyzer is a dual-channel industrial instrument designed for continuous monitoring of pH, conductivity (EC), TDS, salinity, and temperature in water and process applications. Built with a microprocessor-based controller and advanced sensor integration, it delivers accurate, stable, and real-time measurements. With features like multi-parameter display, automatic calibration, and robust industrial design, it is ideal for water treatment, chemical, and process industries.

Simultaneous monitoring of pH and conductivity
Improves chemical balance and dissolved solids control
Reduces instrumentation cost with dual-channel system
Reliable performance in harsh industrial environments
Supports automation with multiple outputs and alarms

Application-Based Customization

Engineered for Your Process Conditions

Expert Selection Support

Reliable After-Sales Service

Still Confused What to Buy?

Need help deciding? Download resources to know more about the product.

https://tipl.com/wp-content/uploads/2026/03/Online-Dual-Channel-pH-Conductivty-Analyzer-T-pH-EC-100.pdf

Large display, standard 485 communication, with online and offline alarm, 144*144*118mm meter size, 138*138mm hole size, 4.3 inch large screen display.
Intelligent menu operation
Multiple automatic calibration
Differential signal measurement mode, stable and reliable
Manual and automatic temperature compensation
Three relay control switches
4-20mA & RS485,Multiple output modes
Multi parameter display simultaneously shows – pH,EC,FCL/turbidity, Temp, current,etc.
Password protection to prevent misoperation by non staff.
The matching installation accessories make the installation of the controller in complex working conditions more stable and reliable.
High & low alarm and hysteresis control. Various alarm outputs. In addition to the standard two-way normally open contact design, the option of normally closed contacts is also added to make the dosing control more targeted.
The 3-terminal waterproof sealing joint effectively prevents water vapor from entering, and isolates the input, output and power supply, and the stability is greatly improved. High resilience silicone keys, easy to use, can use combination keys, easier to operate.
The outer shell is coated with protective metal paint, and safety capacitors are added to the power board, which improves the strong magnetic anti-interference ability of industrial field equipment. The shell is made of PPS material for more corrosion resistance. The sealed and waterproof back cover can effectively prevent water vapor from entering, dustproof, waterproof, and corrosion-proof, which greatly improves the protection capability of the whole machine.

Water and wastewater treatment plants
Power plants and utilities
Chemical and petrochemical industries
Food & beverage and pharmaceutical industries
Biological fermentation processes
Mining, pulp & paper, textile industries
Agriculture and aquaculture

Measuring range: pH:2-16 ; EC:0~2000 ms/cm
Measurement unit: pH,us/cm,ms/cm
Accuracy: pH:±0.01pH; EC:±1%FS;
Resolution: pH:0.01pH; EC:0.01us/cm
Temperature: -10 ~150 dec. C (based on sensor)
Temperature Resolution: 0.1 deg. C
Temperature Accuracy: ± 0.3 deg. C
Temp. compensation: 0 ~150 dec. C
Temp. compensation: Manual & automatic
Current isolated output: Two 4~20mA,20~4mA,0~20mA
Single output: RS485 Modbus RTU
Three relay control contacts: 2 groups:5A 250VAC,5A 30VDC
Three relay control contacts: 5A 250VAC,5A 30VDC
Working conditions: No strong magnetic field interference around except the geomagnetic field.
Working temperature: -10 ~60 dec. C
Relative humidity: <90%
Waterproof rating: IP65
Installation type: Panel & wall mounted or pipeline
power supply: 85~265VAC,9~36VDC,power consumption≤3W
Dimensions: 144×144×118mm ; Hole Size: 138×138mm

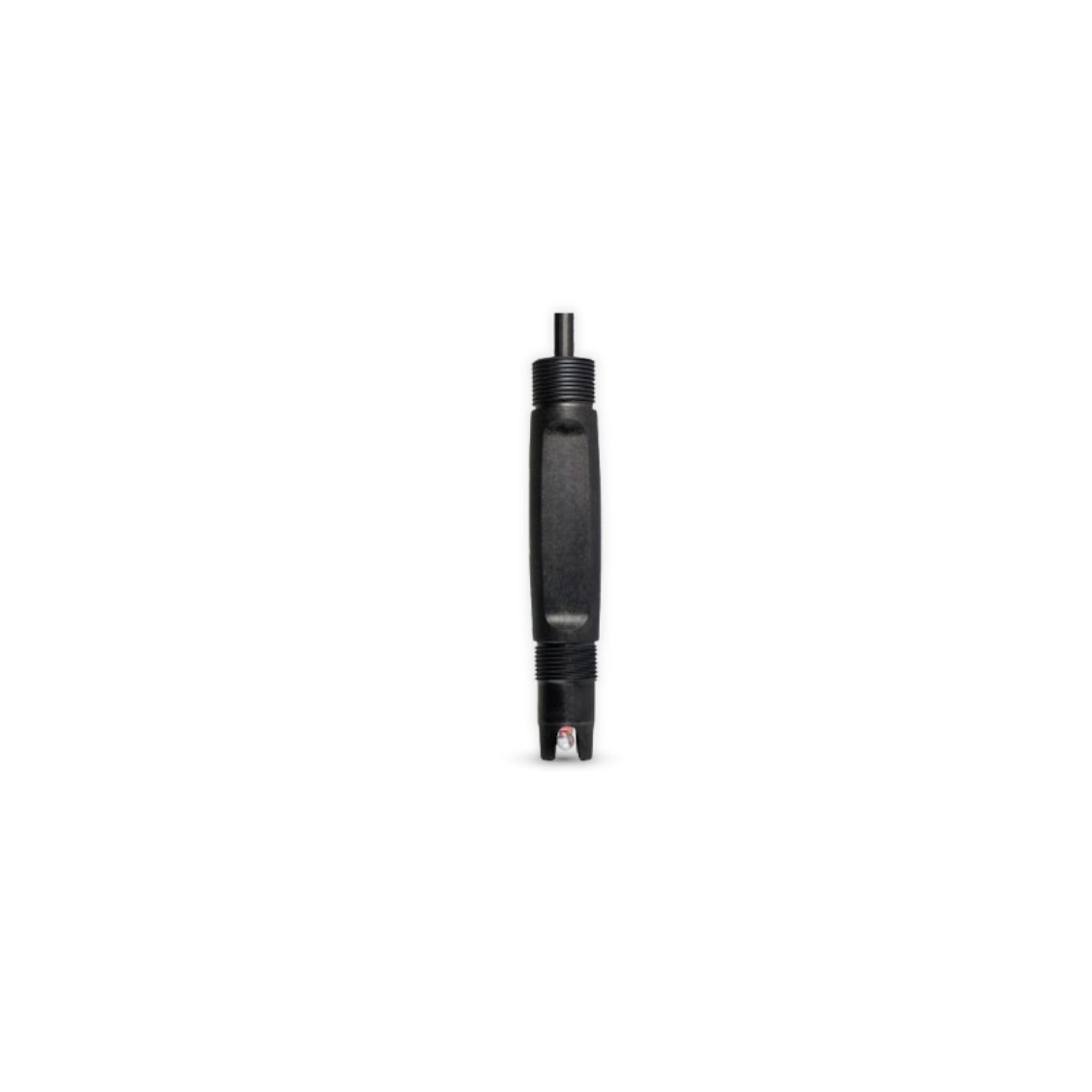

pH zero point: 7.00±0.25pH
Reference system: SNEX Ag/AgCl/KCl
Electrolyte solution: 3.3M KCl
Membrane resistance: <800MΩ
Housing material: Glass
Liquid junction: SNEX
Waterproof grade: IP68
Temperature compensation: NTC10K,PT100,PT1000 (Optional)
Measurement range: 0-14pH
Accuracy: ±0.01pH
Pressure resistance: ≤ 10 bar
Temperature range: 0-130℃
Calibration: Sample calibration, standard liquid calibration
Double Junction: Yes
Cable length: Standard 5m cable, can be extended to 100m
Dimensions: 12120mm or 12225mm (Customize)
Installation thread: PG13.5

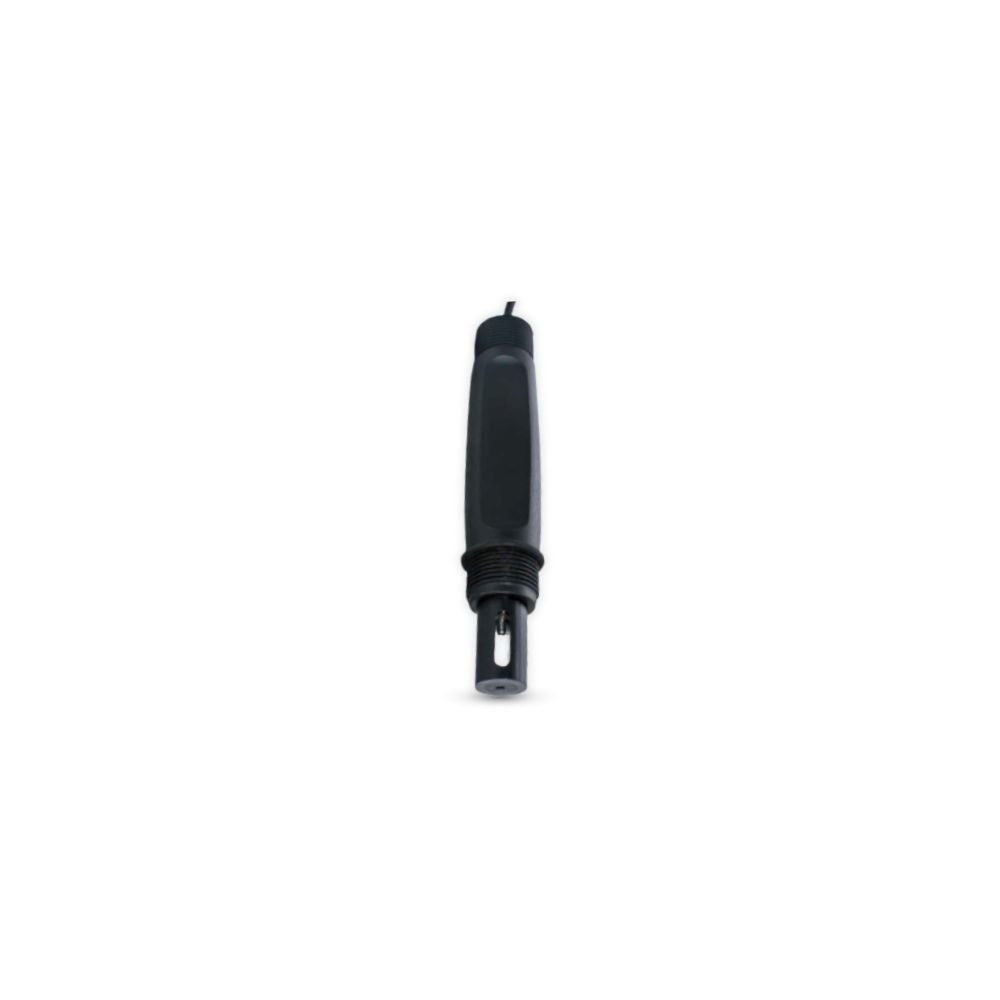

Model No: TOR-EC-2000
Measuring Mode: Electromagnetic
Material: PFA
Range: 0~2000 ms/cm
Accuracy: ±0.01%F.S
Temperature range: -20℃-130℃(Limited by the sensor body material and installation hardware only)
Pressure resistance: ≤16 bar
Temperature compensation: PT1000
Calibration: Standard solution calibrate and field calibration
Connection Methods: 9 core cable
Waterproof Rating: IP68
Calibration: Sample calibration, standard liquid calibration
