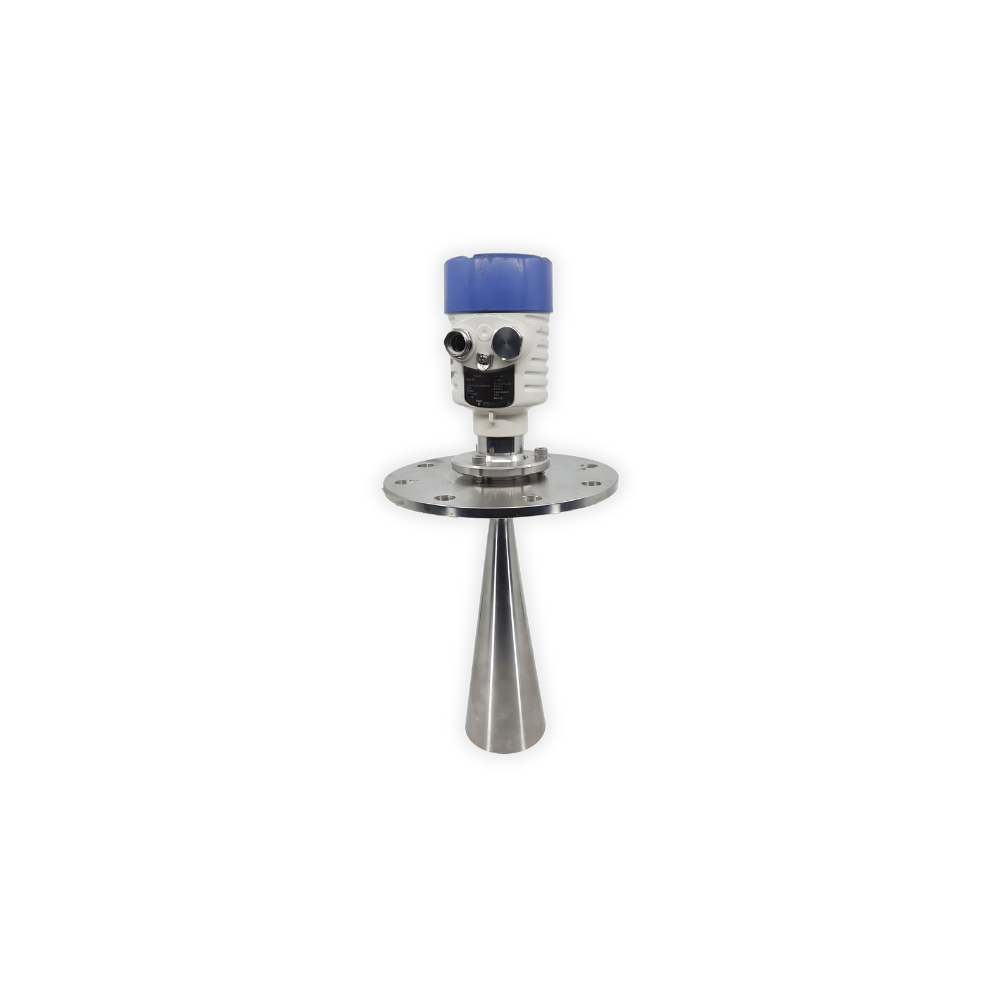

Pulse Radar Level Transmitter (Solid)

TLR1000A6

The TLR1000A6 Pulse Radar Level Transmitter is a high-performance 26 GHz non-contact radar sensor designed specifically for measuring solid materials in industrial storage tanks and silos. Using pulse radar time-of-flight technology, the transmitter measures the distance to the material surface by calculating the travel time of microwave signals. Its high-energy beam, advanced signal processing, and robust design ensure reliable level monitoring even in dusty environments or fluctuating process conditions.

Reliable non-contact solid level measurement without mechanical wear
Accurate monitoring even in dusty or harsh industrial environments
Suitable for large silos with measurement ranges up to 70 m
Stable performance under fluctuating process conditions
Flexible installation with multiple antenna sizes and flange options

Application-Based Customization

Engineered for Your Process Conditions

Expert Selection Support

Reliable After-Sales Service

Still Confused What to Buy?

Need help deciding? Download resources to know more about the product.

https://tipl.com/wp-content/uploads/2026/03/PULSE-RADAR-LEVEL-TRANSMITTER-TLR1000A6Solid.docx.pdf

26 GHz pulse radar technology optimized for solid materials
Measurement range up to 70 m
High signal-to-noise ratio for stable measurements
Small antenna and compact design for easy installation
Short wavelength for enhanced reflection from inclined surfaces
High-energy focused beam with improved anti-interference performance
Unaffected by vapor, pressure, foam, corrosion, or dust
Multiple antenna sizes (Φ46 mm to Φ121 mm) for different applications
Supports 4–20 mA, HART, and RS485 Modbus communication
Wide process temperature capability up to 250°C

Cement and clinker silos
Coal storage bunkers
Steel plant raw material storage
Power plant coal silos
Bulk solid storage in building material plants
Mining and mineral processing storage tanks

Measurement Technology: Pulse Radar
Frequency: 26 GHz
Measurement Range: 10 m / 20 m / 30 m / 40 m / 50 m / 60 m / 70 m
Accuracy: ±15 mm
Non-repeatability: ≤1 mm
Resolution: 1 mm
Beam Angle: 18° / 12° / 8° / 6°
Antenna Type: High-precision conical antenna
Antenna Material: Stainless Steel / PTFE
Signal Output: 4–20 mA / HART / RS485 Modbus
Power Supply: 24 V DC or 220 V AC
Wiring: Two-wire or four-wire
Process Temperature: −60°C to +250°C
Process Pressure: −1.0 to 4.0 MPa
Housing Material: Aluminum / ABS
Protection Rating: IP67 (ABS) / IP68 (Aluminum)
Process Connection: G1½ thread / 1" NPT / flange
Display: LCD
