TRAPChecker
Checker

TRAPChecker

-

Related Products

LEAKchecke... LUBEChecke... TIGHTCheck...

Focused: Inefficient steam systems waste energy and impact product quality. TRAPChecker is an ultrasound solution focused on finding failed steam traps. It works on every style of trap and failure mode.

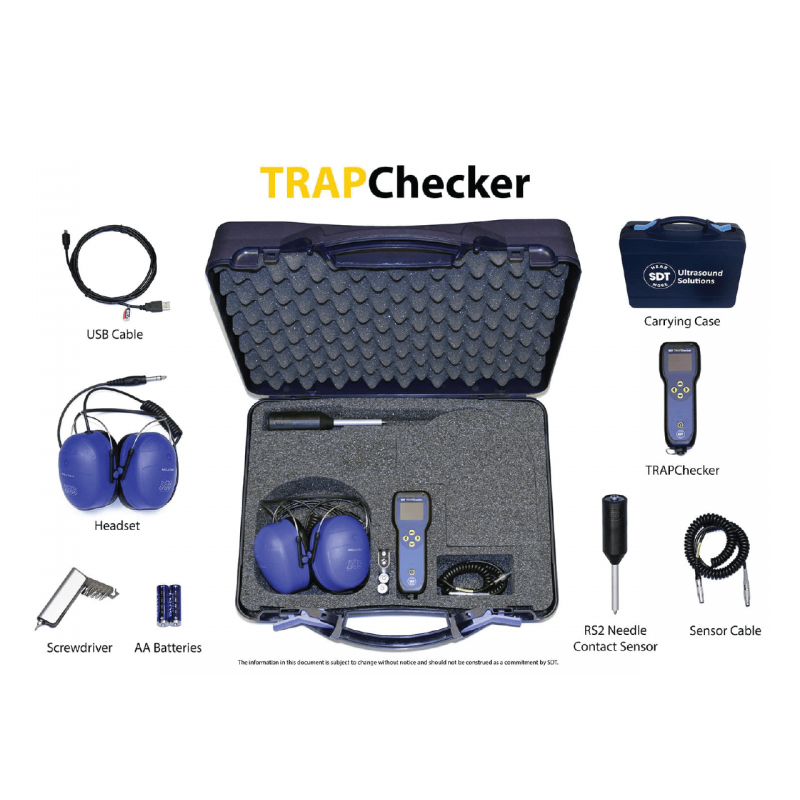

Simple: TRAPChecker is so easy to use. Simply open the box, connect the sensor, and hear the difference between a good and bad steam trap.

Affordable: As much as 40% of your steam traps could be operating in a failed state. The low entry cost of TRAPChecker and the high cost of energy, could see your investment recovered the first time you use it.

The TRAPChecker detects internal turbulence by defective steam traps and passing valves. Designed to work with SDT’s RS2 Needle Contact Sensor.

Operable with: RS1 Needle Sensor

Measurement channel: 1 channel via a 7 pole LEMO connector

Display: 160x128 pixels Color OLED

Keyboard: 5 function keys

Measuring range: -6 to 99.9 dBµV (reference 0 dB = 1 µV)

Resolution: 0.1 dBµV

Measurement bandwidth: 35 to 42 kHz

Signal amplification: +30 to +102 by step of 6 dB

Operating temperature range: -10 to +50 °C |14 to 122°F

IP rating: IP42
